Anchor Handling Tug For Sale


Page Views: 1111
All Ads by User | Add to Favorites | Reply to Ad | Tell Your Friends
Ad Number: 743
Year: 2010
Model: AHTS Ocean Going Tug
Length: 51 M
Beam: 15 M
Light Draft / Max Draft /Light Ship Weight/: 5 M Design Draft 6.5 M MAX
Propulsion/ Props/: 2 x MAK 9M25 rated at 3983HP each at 750 RPM 2 Electro-hydraulic steering gear units of total 12 t. Remote controlled from wheelhouse
Overstock Price: Try 5MM USD As Is AT Dry Dock
Fuel Capacity, Transfer Rate, Lube Oil: 910 M x3 Oil Dispersant System 2 dispersant spray boom 5 m length with 5 nozzles @ 125 liter min 5 kg cm2 from each nozzle.
Genset(s): (3) CAT C18 440 360 Generating 425 KW each
Deck Space/ Cargo Capacity / Winches, Crane & Other Equipment: 200 M Sq. Deck space, I Unit Electro hydraulic towing winch, 200 Tones brake holding, 150 T pull @ 8 m/min at I st layer on main deck. 1200 x 64 mm towing Drum 1000 x 64 mm A/handling drum 2 x 10 t @ 15 m/mim electro hydraulic tugger 4 m length x 1.5 m
Water / Liquid & Dry Mud Caps: Fresh Water Maker @ 5 Tons per day Capacity: 170 Mx3
GT/NT/ Bollard Pull & Towing Equipment: Bollard Pull: 106 MT, GRT: 1347 NRT:404
Accommodations:

3 x 4 man cabins

3 x2 man cabins

2 x l man cabins

Total— 20 men

Electronics:

VHF (4)

SSB

Radars (2)

GPS (2)

Echo sounder

Doppler Speed Log

Autopilot

GMDSS

AIS

Dual Gyro Compass

Gyro Compass Repeater(4)

Steering Control

Rudder Indicater

Magnetic Compass

Azimuth Circle

Anemometer

Navtex Receiver

Mini -M



Sailor - 6222 (VHF-DSC)

Fumo - FS 2570

Fumo - MU 201 CR (ARPA)

Fumo - GP 150 GP 32

Fumo - FE 700

Fumo DS-80

Simrad - AP 50

Fumo - Felcom 15

Fumo - FA 150

Simrad - GC 80

Simrad - AR 80 81

Kobelt

Korea RA 05 (fwd/aft)

Saura Keiki MR-150

GFC 190-152

R M Yong - 06206

Fumo NX- 700 B

Thrane & Thrane



Class/ Life Saving Equipment: ABS + Al (E) towing vessel, Offshore Support Vessel (AH) FF Class 1 + AMS, Rescue Boat I x 6 men semi-rigid dinghy c w 25 HP outboard motor
Boat Location: Arabian Gulf

Special Features:

Oily Water Separator

I M3 /hr pump and 15 ppm alarm

Installed in bilge system

External Fire Fighting System 2 x fire pumps PTO from main engines @ 1500



Contact Us: Email Us
Call Us: Bob - 954.224.2628

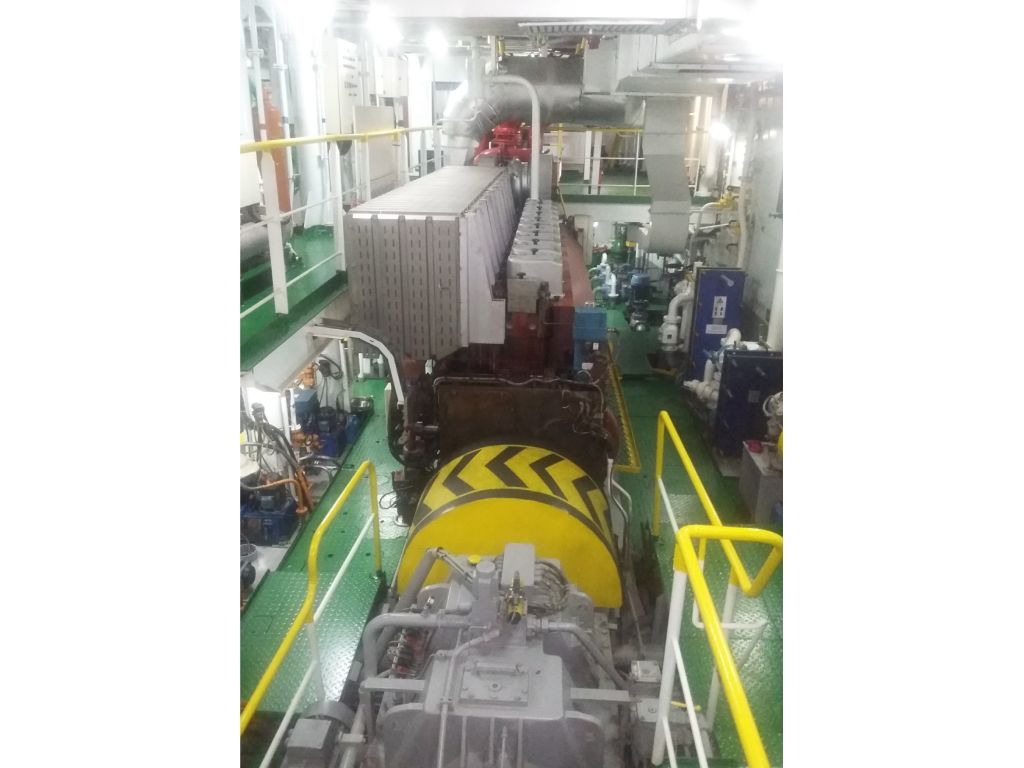

This ABS + A1 Towing vessel for sale is powered by Twin 3,983 HP MAK 9M25's spinning 2 x 4 Bladed props within ZF CPP Fixed Kort nozzels. In brief,  Bollard pull is 106 Tons with a maximum speed of 12kts at 750 RPM.

The Electro towing winch is supported by a 200 ton brake holder and 150T pull. See specifics in boxes above.

She accommodates 20 persons in 8 cabins.
