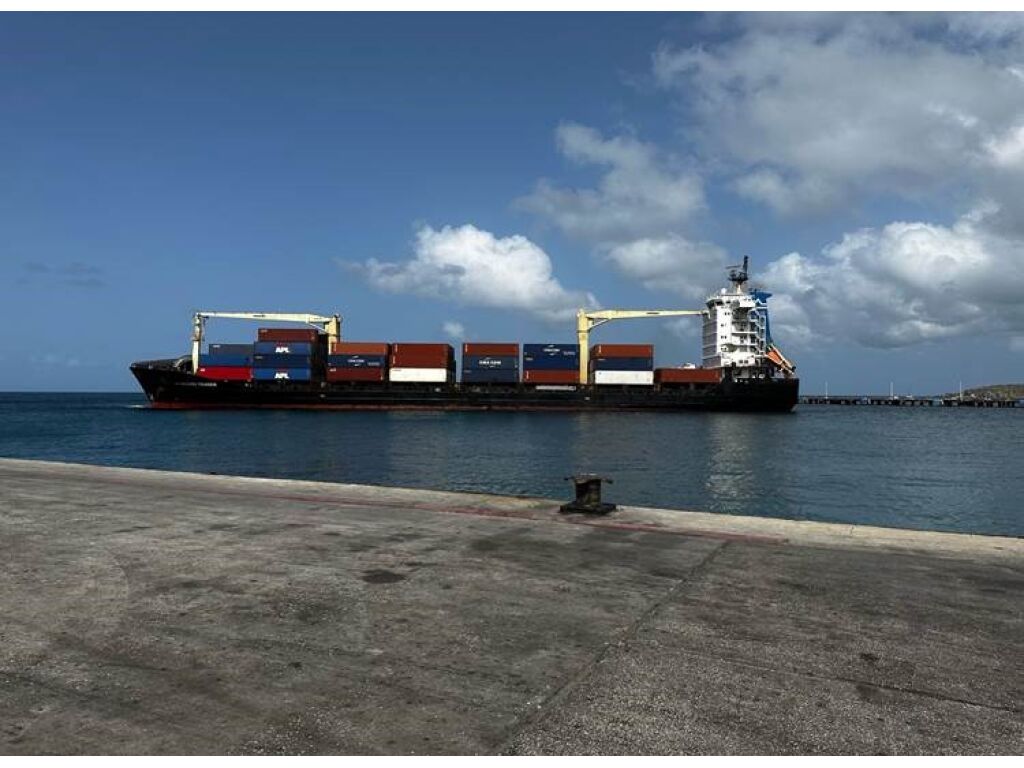

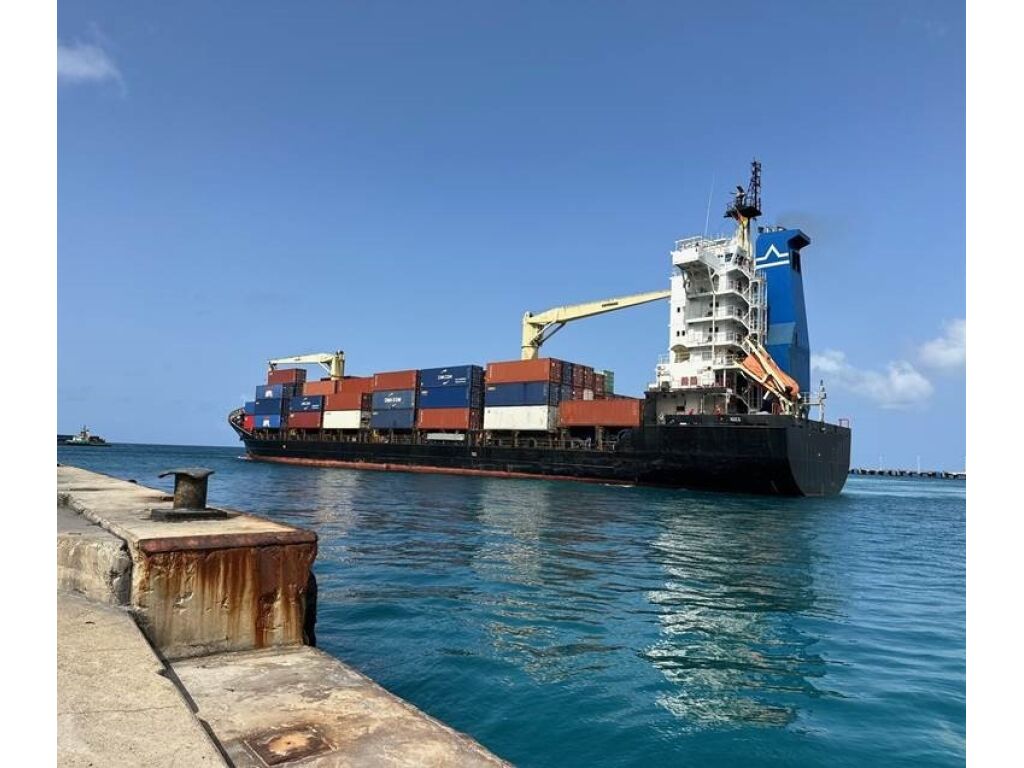

1100 TEU Geared Container Vessel
| Ad Number: | 860 |
| Year: | 2005 |
| Model: | Geared Container Ship |
| Length: | LOA : 148 m LBP : |
| Beam: | Beam : 23.25 m |
| Light Draft / Max Draft /Light Ship Weight/: | Depth moulded : About 11.5m |
| Propulsion/ Props/: | Main Engine : B&W 7L 58/64, 9730 kW, 428 rpm. |
| Overstock Price: | $6,565,000.00 |
| Fuel Capacity, Transfer Rate, Lube Oil: | Heavy Fuel Oil (IFO 380) Abt 1100 cbm Marine Diesel Oil :Abt 225 cbm |
| Genset(s): | Auxiliaries : 3 x MAN B7W Holeby 6L 18/24, 570 kW, 1200 rpm. |
| Deck Space/ Cargo Capacity / Winches, Crane & Other Equipment: | Reefers On Deck: 164 plugs fitted In Holds 56 plugs fitted HOMOGENOUS LOADING CAPACITIES:14 M/ts 698 TEU capacity : 1,118 TEU of 20’ x 8 x 8’6’’STOWAGE In Holds & On Deck Total 40’ & 20’ Containers 162 + 10 380 + 24 542 + 34 20’ Containers 3 |
| Water / Liquid & Dry Mud Caps: | Fresh Water : Abt 146 cbm Ballast Water Abt 4564 cbm |
| GT/NT/ Bollard Pull & Towing Equipment: | GT/NT : 10,450.58 mts / 8,527.05 mts Deadweight / Draft (scantling) : 13,760 mts at loadline draft of about 8.5m |
| Accommodations: | 22 Crew with full galley |
| Class/ Life Saving Equipment: | DNV-GL / * 100 A5 E Multi-Purpose Dry Cargo Ship, IW SOLAS-II-2,Reg.19 Equipped for Carriage of Containers, Strengthened for Heavy Cargo |
| Boat Location: | Panama Flagged, Carib Operation |
Notable Features: Tiers on deck/in holds : 784/334 TEU Reefer Container on deck/in holds : 164 on deck /56 in holds
| |
| Contact Us: | Email Us |
| Call Us: | Bob - 954.224.2628 |
VESSEL’S DESCRIPTION:
Geared Cellular - Container Vessel – Type CV – 1100 plus Built : 2005
MAIN PARTICULARS:
TEU capacity : 1,118 TEU of 20’ x 8 x 8’6’’ LOA : 148 m LBP : 141.37 m Beam : 23.25 m Depth moulded : About 11.5m GRT/NRT : 9,957 mts / 5,032 mts Panama NRT : 9,151 mts Suez GT/NT : 10,450.58 mts / 8,527.05 mts Deadweight / Draft (scantling) : 13,760 mts at loadline draft of about 8.5m SSW Tiers on deck/in holds : 784/334 TEU Reefer Container on deck/in holds : 164 on deck /56 in holds
CARGO GEAR
2 liebherr cranes located midships between holds no. 2 and 3 and between holds no. 4 and 5
Outreach : 45 m/tons at 26.5m outreach and 40 m/tons at 29.5 m outreach
CONTAINER CAPACITIES:
40’ 20’ 20’
On Deck:
380 + 24 784
In Holds:
162 + 10 334
Total{
542 + 34 1,118
Reefers
On Deck: 164 plugs fitted
In Holds
56 plugs fitted
HOMOGENOUS LOADING CAPACITIES:14 M/ts 698 teus
In Hold On Hatch Covers
Above Engine Room
20’
120 mts
50 mts
0 mts
40’
150 mts
80 mts
80 mts
STOWAGE
In Holds
On Deck
Total
40’ & 20’ Containers
162 + 10
380 + 24
542 + 34
20’ Containers
334
784
1,118
TANK CAPACITIES (90% FULL)
Heavy Fuel Oil (IFO 380)
:
Abt
1100
cbm
Marine Diesel Oil:
Abt 225 cbm
Fresh Water Abt 146 cbm
SPEED AND CONSUMPTION:
At Sea About 16 Knots On about 32.60 mts IFO 380 About 15 Knots On about 30.80 mts IFO 380 About 14 Knots On about 26.50 mts IFO 380 About 13 Knots On about 23.50 mts IFO 380 Speed and consumption figures are basis clean bottom & optimum trim on design draft. In addition to main engine consumption, auxiliary generators & auxiliary boiler consumptions: At Sea 2.50 per day MGO for auxiliaries + Additional for reefer containers In Port 2.50 – 6.0 tons of MGO per day depending on usage of ventilators, and cranes. Small amount of MGO for starting/stopping engines and for manoeuvring. + Additional consumption for Reefers.
(When running below 50% load, vessel will need to increase speed for approximately 1 hour each day)
All speeds and consumptions are given basis clean/smooth bottom, even keel, deep and currentless water/sea with a temperature of maximum 28 degrees Celsius, wind maximum Beaufort 2 and sea not exceeding Douglas Sea State 2.
