128' Large Ocean Tug For Sale

All Ads by User | Add to Favorites | Reply to Ad | Tell Your Friends

Ad Number:	842
Year:	Hull Laid 1994 with significant upgrades by 2014
Model:	Ocean Going Tug
Length:	128'
Beam:	36'
Light Draft / Max Draft /Light Ship Weight/:	19'
Propulsion/ Props/:	Twin, EMD Turbo 12-645 FB diesel engines totalling 5,100 horsepower. Approx 5,900 hours
Your Price:	Price on Request to Direct Buyer Only
Fuel Capacity, Transfer Rate, Lube Oil:	80,000 GALLONS
Genset(s):	Her electrical service is provided by two, Caterpillar 300 kW generator sets. With an additional 65 KW, emergency, Caterpillar generator set.

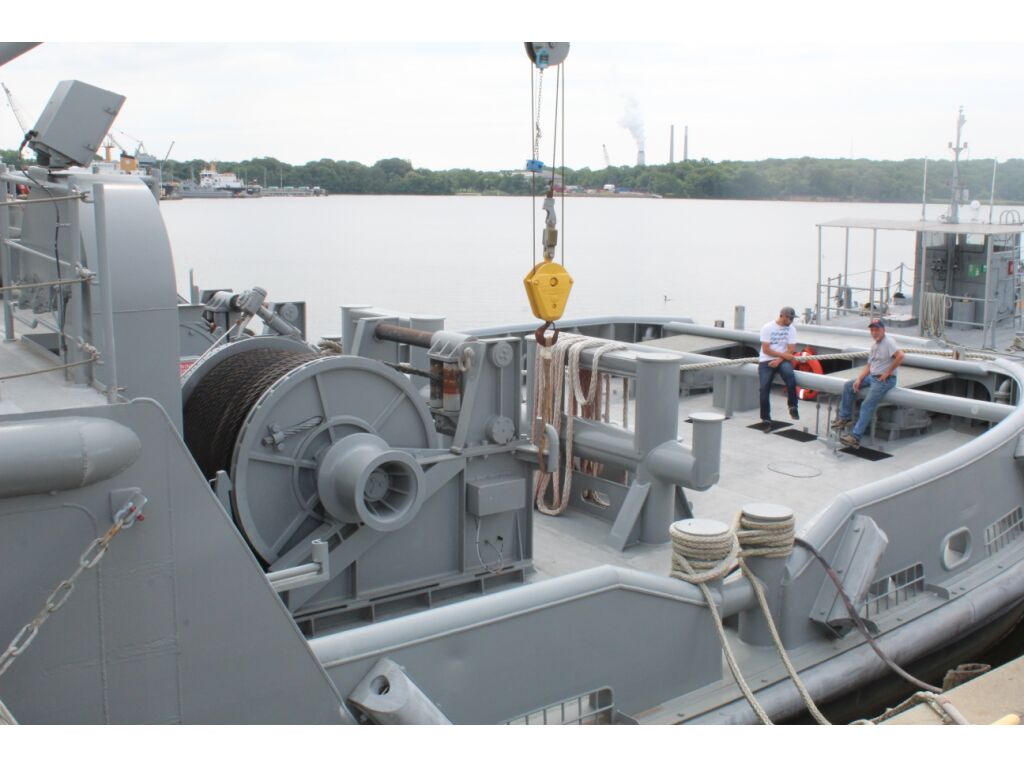

Deck Space/ Cargo Capacity / Winches, Crane & Other Equipment:	The towing Towing equipment consists of two, single drum, Almon Johnson 333, towing winches. Appleton 15,000lb. Crane Davit
Water / Liquid & Dry Mud Caps:	7,200 Gallons
GT/NT/ Bollard Pull & Towing Equipment:	Gross Tonnage: 688 Net Tonnage: 206 / Bollard pull; 58 Tons/ (2) single drum, Almon Johnson 333, towing
Class/ Life Saving Equipment:	Fire Fighting Fire Detection System , (2) Fire Pumps Service (2) EA AFFF 1 EA Emergency 1 EA Fire Monitor (water/foam) (3)EA . (11) Fire Fighting Stations (1) 16' Willard Marine RHIB w/ 40 hp Outboard
Boat Location:	East Coast, USA
SPECIAL FEATURES & UPGRADES: The most obvious and significant modification has been a reduction in the height of the superstructure by one deck.  A new much larger wheelhouse structure has been fabricated at the base in Aluminium Alloy. Both exhaust uptakes have been reduced considerably in height and a new mast structure has been added. Other measures taken to improve stability include, a large reduction in the weight of fendering around the bow and raised forecastle, fitting larger bilge keels and the conversion of void spaces into internal tanks. The latter has increased the vessels range (free-running at 12 knots) from 3,906 miles to 5,926 miles. Fuel and ballast transfer equipment has also been significantly upgraded. As part of the same project, a great deal of effort has been expended in reducing noise levels onboard by improving insulation and modernising the ventilation system and air ducting. Noise levels on the bridge have been reduced from 70.1db to 60.2db. New consoles have been installed on the bridge wings for propulsion and winch controls.  ABS Loadline just expired with ship being scheduled for dry dock. Can Purchase as she lies or complete re-certification if you require such.
Contact Us:	Email Us
Call Us:	Bob - 954.224.2628

Accommodations:

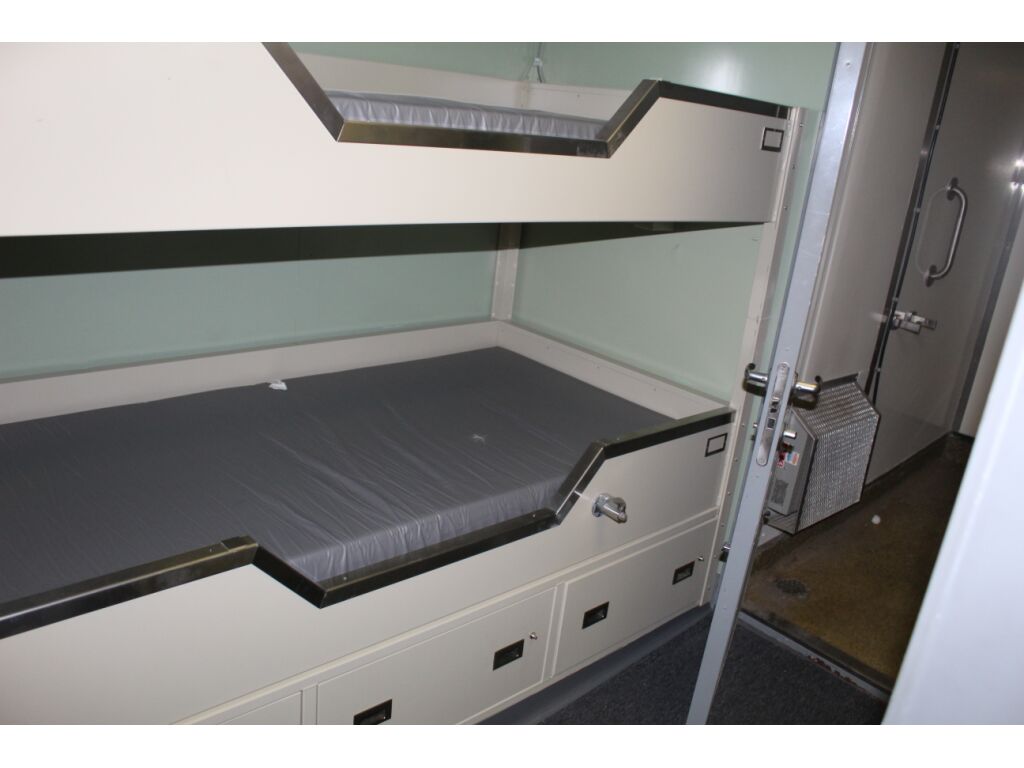

Accommodations for 23 Personnel

Flash evaporators for making potable water Food Supply

Full galley to support 24 HR operation

Medical 1 sick bay

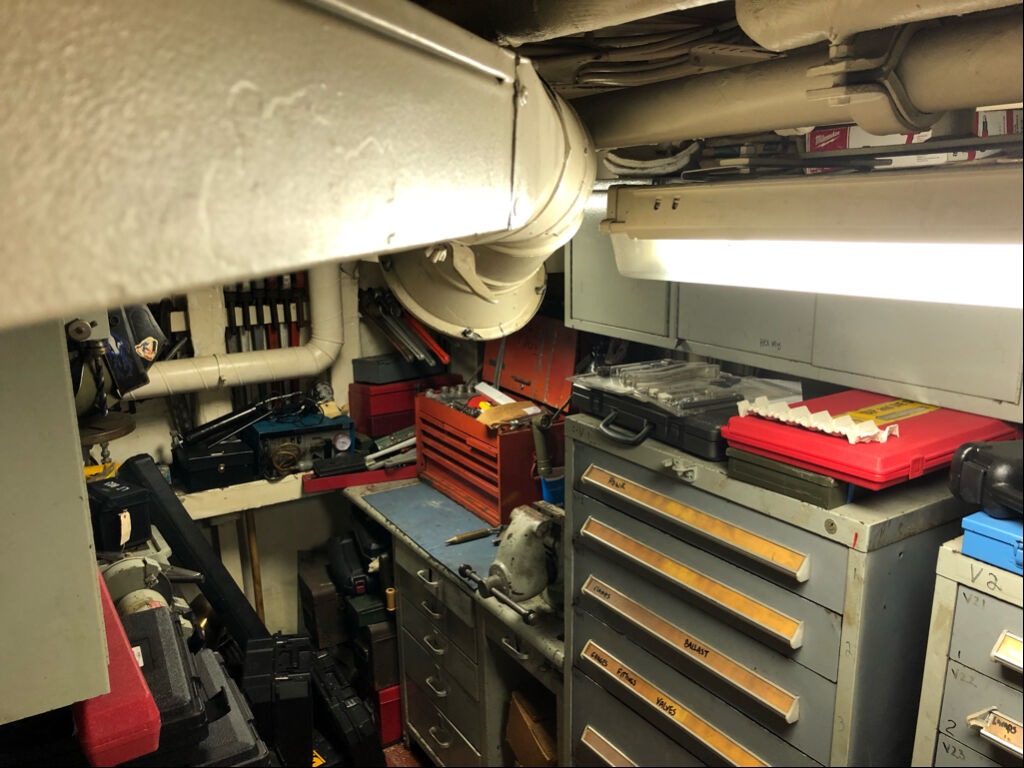

Maintenance: Machine shop space, On‐board spare parts storage space

Life Rafts for 25 persons



---

Electronics:

BRIDGE Radar

Raytheon 3 cm and 10 cm                                     2 EA

ARPA tracks up to 99 targets simultaneously Range: Up to 96 NM

Electronic Chart Display System (ECDIS)

Depth Finder

Sperry                                                                     1  EA

Communications

Marine Band Radio

INMARSAT Global  System Voice @ Data

Global Maritime Distress & Safety System (GMDSS)

CAT Service Diesel Generators 300 kW

2  CAT Emergency Diesel Generators 65 KW

---

This Jones Act,  Ocean going tug, was built in the USA in 1994 and significantly upgraded in 2014 for use in ocean and coastal towing operations. She is powered by twin, EMD Turbo 12-645 FB diesel engines rated at 5,100 horsepower.
Her electrical service is provided by two, Caterpillar 300 kW generator sets. With an additional 65 KW, emergency, Caterpillar generator set.
The towing Towing equipment consists of two, single drum, Almon Johnson 333, towing winches. It has a secondary mission of accomplishing general-purpose harbor duties, such as positioning floating cranes. She is equipped to accomplish fire-fighting duties, a significant capability, particularly where ammunition ships are being worked. It can also be used to perform salvage and recovery operations for other watercraft disabled or damaged along coastal waterways.  * General-purpose duties to include fire-fighting, barge transport repositioning and salvage

• Hull Depth: 19'
• Hull Length: 128'
• Hull Breadth: 36'
• Gross Tonnage: 688
• Net Tonnage: 206





---
