Ad Number: | 652 |
Year: | 2007 |
Model: | Anchor Handling Tug |
Length: | 229.82 ft. X 52.5 ft. X 23.6 ft. (70.05 m X 16 m X 7.2 m) |
Beam: | 52'5" |
Light Draft / Max Draft /Light Ship Weight/: | 23'6" |
Propulsion/ Props/: | (2) 3,000 kW (8,046.13 BHP) @13kts |
Your Price: | $4,725,000. usd |
Fuel Capacity, Transfer Rate, Lube Oil: | 235,319 gals. (890.78 cu. m) |
Deck Space/ Cargo Capacity / Winches, Crane & Other Equipment: | Clear Deck 42 ft. x 122 ft. (12.80 m x 37.19 m) Cargo Deck Area 5,124 sq. ft. (476.04 sq. m) Deck Strength 7.38 LT/sq. ft. (7.5 MT/sq. m) Deck Cargo Capacity 590.52 LT (600 MT) |
Water / Liquid & Dry Mud Caps: | Fresh Water 161,536 gals. (611.48 cu. m), Dry Bulk 1,257.96 barrels (200 cu. m) Liquid Mud 4,045 barrels (643.12 cu. m) |
GT/NT/ Bollard Pull & Towing Equipment: | Deadweight Tonnage 2,538.69 LT (2,579.43 MT) |
Boat Location: | GOM |
Contact Us: | Email Us |
Call Us: | Bob - 954.224.2628 |
Accommodations for 42 Passengers

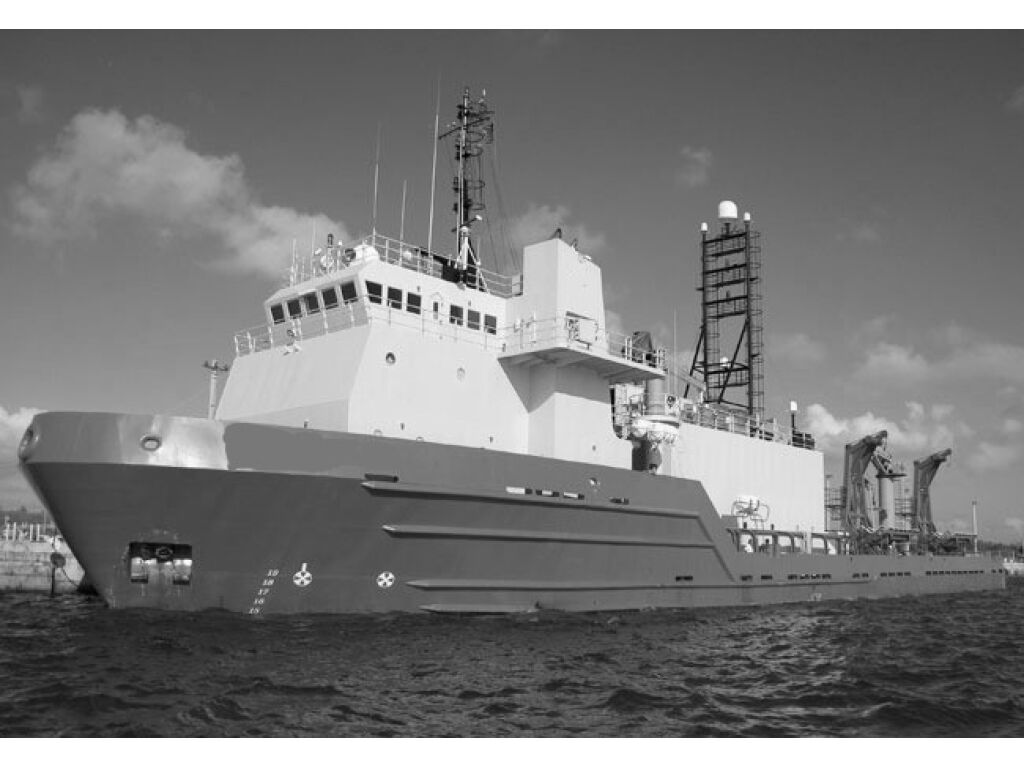

Vessel Type: AHTS Tug
Year Built 2009
DIMENSIONS
Dimensions 229.82 ft. X 52.5 ft. X 23.6 ft. (70.05 m X 16 m
X 7.2 m)
Design Draft 20.01 ft. (6.1 m)
Clear Deck 42 ft. x 122 ft. (12.80 m x 37.19 m)
Cargo Deck Area 5,124 sq. ft. (476.04 sq. m)
Deck Strength 7.38 LT/sq. ft. (7.5 MT/sq. m)
Deck Cargo Capacity 590.52 LT (600 MT)
Deadweight Tonnage 2,538.69 LT (2,579.43 MT)
CAPACITIES
Fuel Oil 235,319 gals. (890.78 cu. m)
Ballast/Drill Water 102,353 gals. (387.45 cu. m)
Fresh Water 161,536 gals. (611.48 cu. m)
Dry Bulk 1,257.96 barrels (200 cu. m)
Liquid Mud 4,045 barrels (643.12 cu. m)

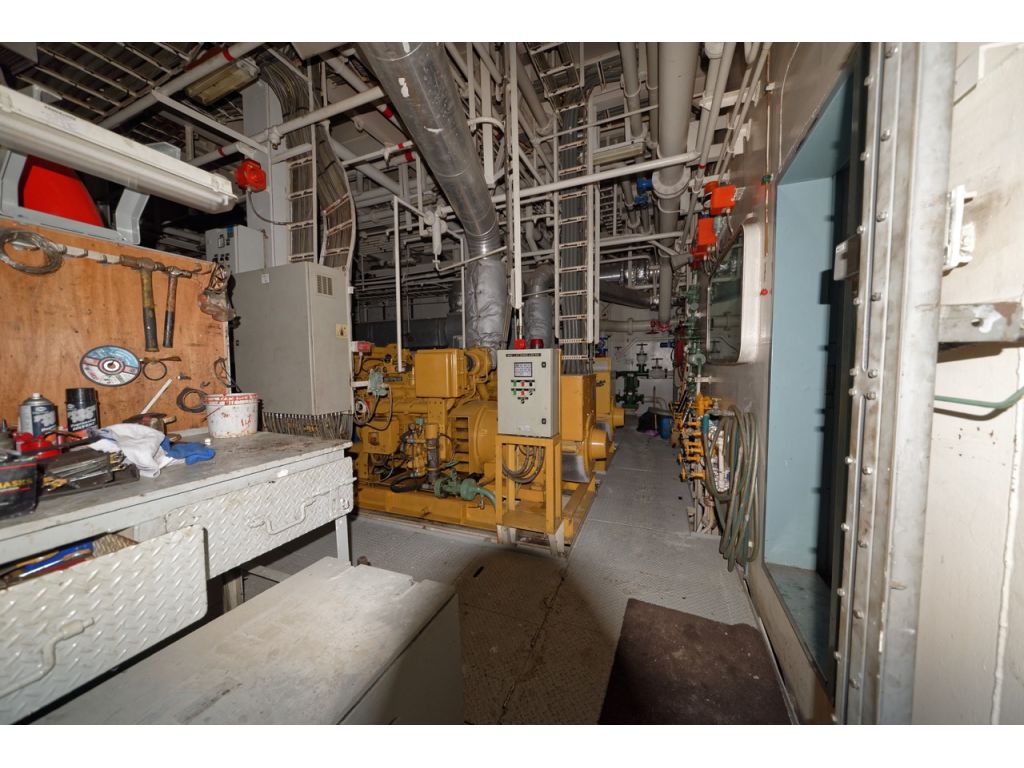

MACHINERY
Main Engines Two (2) 3,000 kW (8,046.13 BHP)
Speed 13.5 knots
Towing and Anchor Handling Equipment:
One (1) x electro-hydraulic waterfall double
drum, Brattvaag, One (1) x declutchable upper
towing drum, One (1) x declutchable lower AH
drum with band brakes, Drum Wiire Capacity
058 mm x L 1400 mm SWR each, Brake
Holding 250 mt, Low Speed 210 mt stalling,
Pull on 1st layer (2 pumps) 200 mt @ 0-8
m/min, Pull on 1st layer (3 pumps) 200 mt@0-
10 m/min, High Speed 65 mt stalling, Pull on
1st layer (2 pumps) 60 mt @ 0-26 m/min, Pull
on 1st layer (3 pumps) 60 mt @ 0-34 m/min,
Gypsies (Cable Lifters) 2 for 076 mm and 081
mm chains, Rope Storage Reel 1 x electrohydraulic,
Brattvaag, Drum 1 x fixed
01,000/2,200 x L 1, 700 mm, for 058 mm x L
1,500 mm rope rated 7. 7 mt pull @ 0-32
m/min
LIFE SAVING EQUIPMENT
Life Rafts Six (6) Inflatable Life Rafts
Rescue Boat/Craft One (1) Rescue Boat
CLASSIFICATION
ABS +A1E (Towing Vessel)
ABS OSV
ABS Firefighting Class 1
ABS AMS
ABS DPS-2
ACCOMMODATIONS
