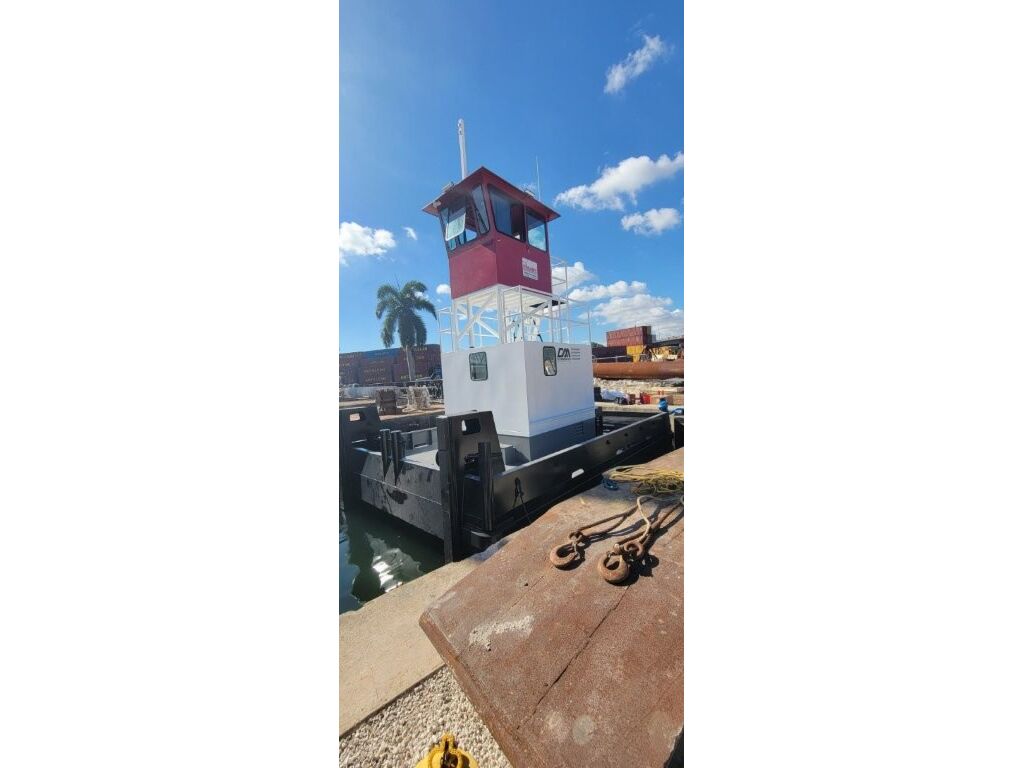

Truckable 820 HP 16' Beam Tug on Order

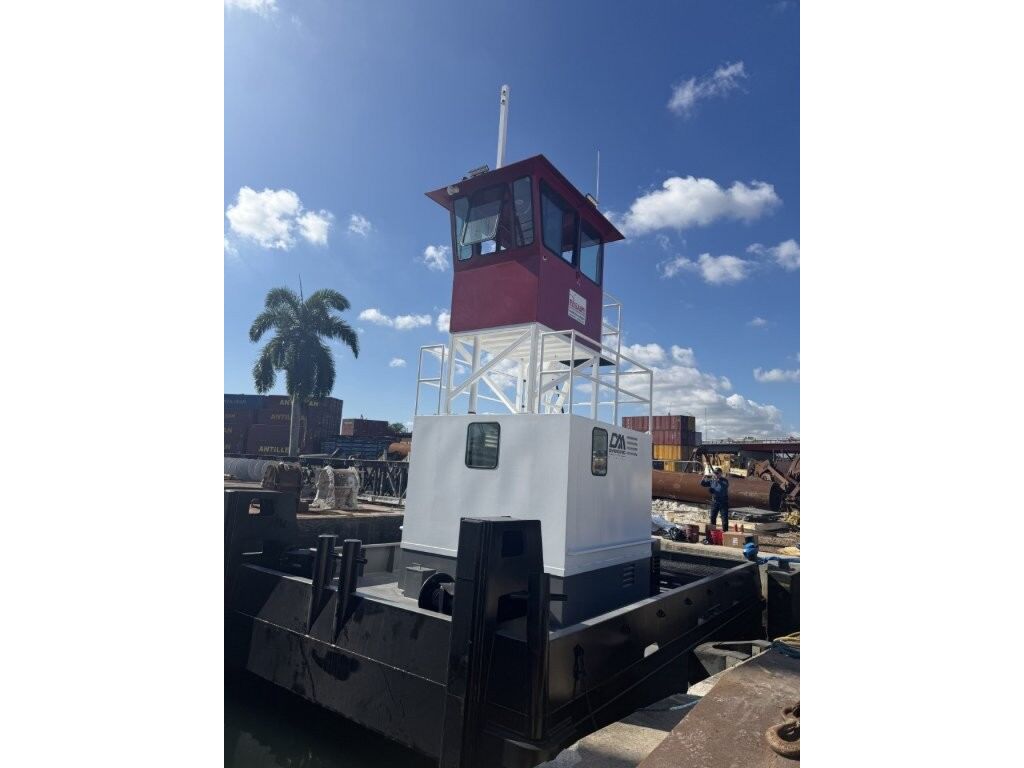

16' Beam 2026 Model

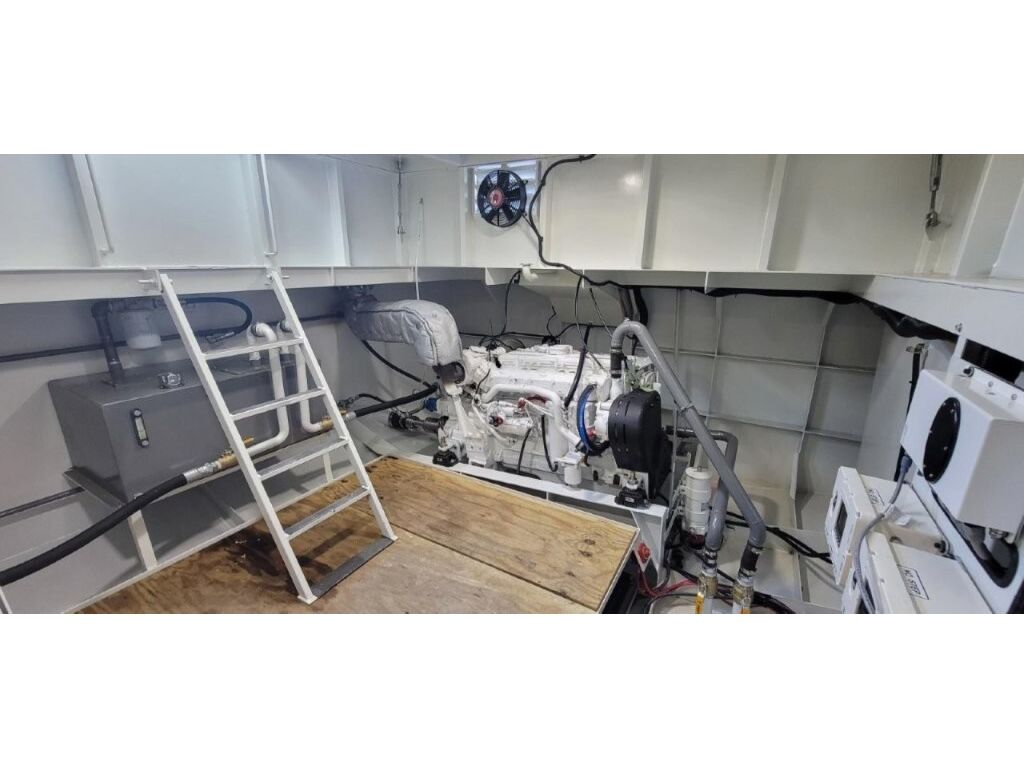

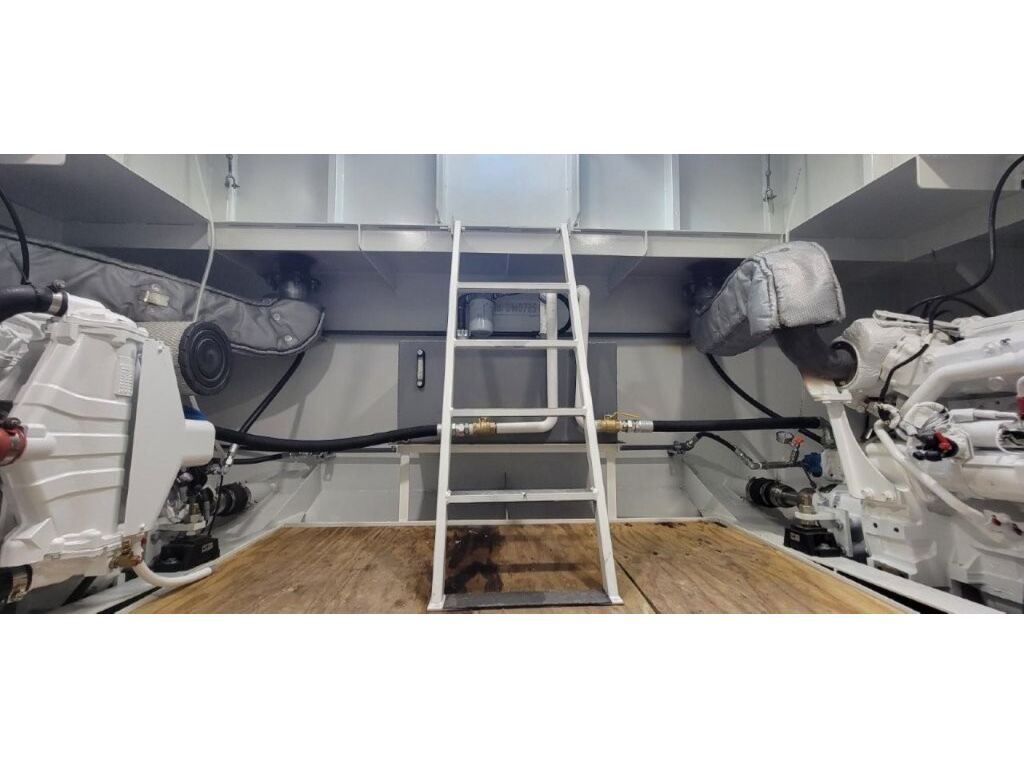

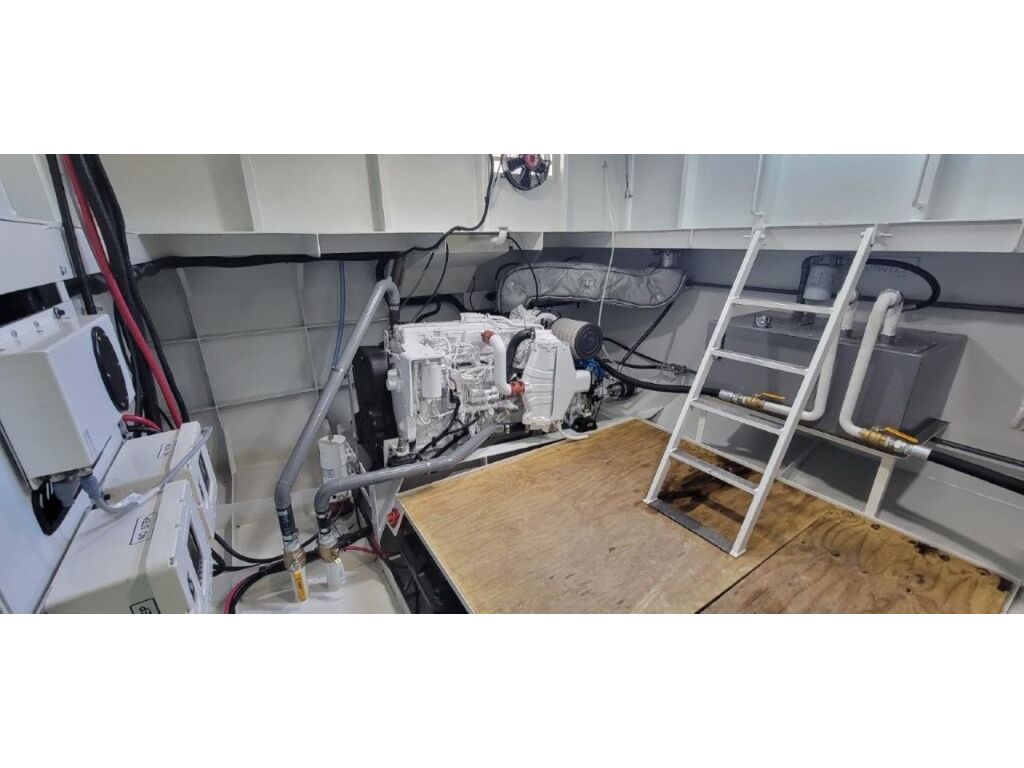

Twin QSL9-M 410 HP CUMMINS

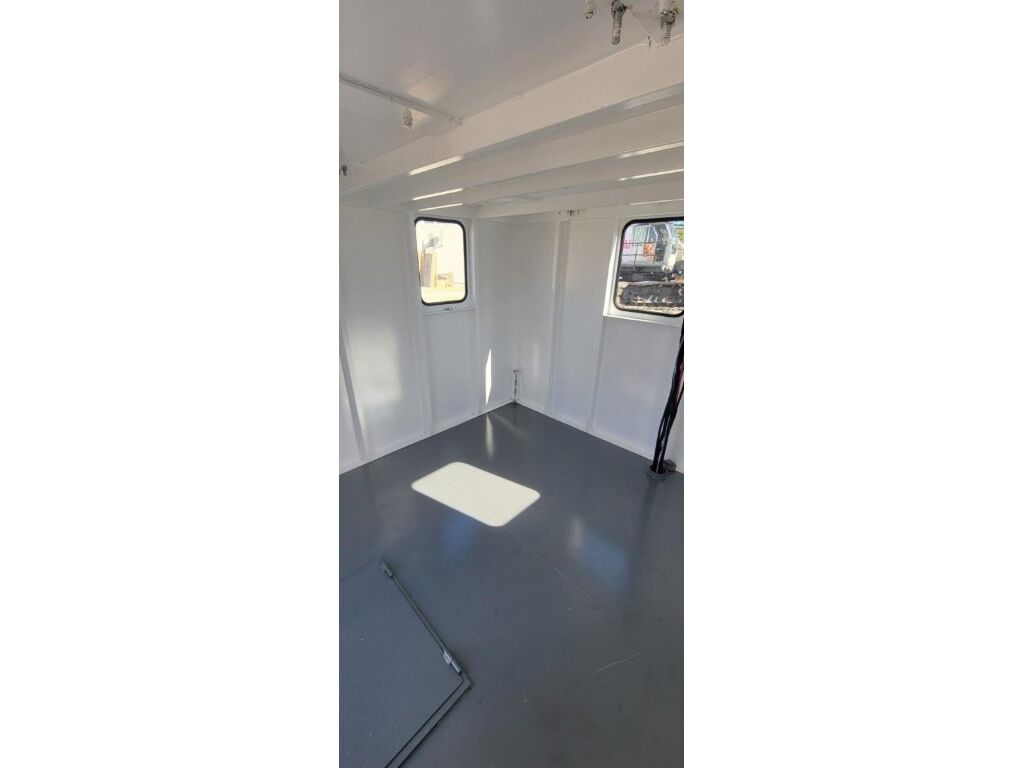

Storage in Trunk Cabin

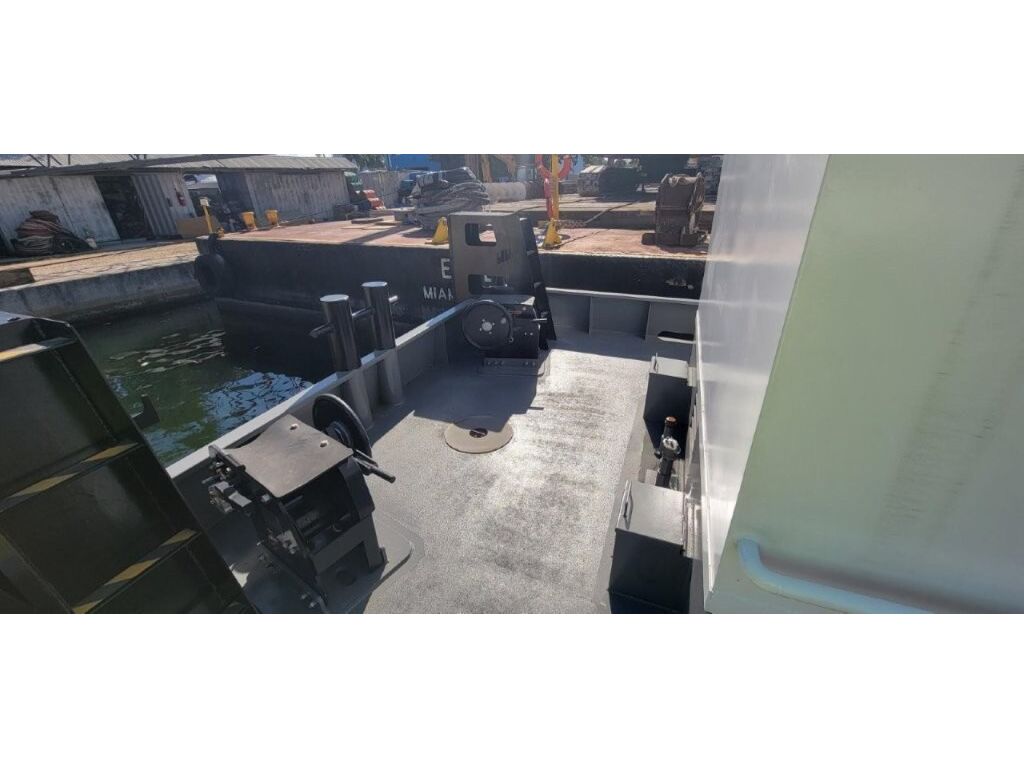

Optional Winches
| Ad Number: | 980 |
| Year: | 2026 |
| Model: | 2026 Truckable 25' 820 HP Tug for Sale |
| Length: | 25' |
| Beam: | 16' |
| Light Draft / Max Draft /Light Ship Weight/: | 4'5" |
| Propulsion/ Props/: | (2) QSL9-M Cummins 410 HP Each. Totalling 820HP / 34" diameter x 19" pitch four blade bronze wheels (TBD) Twin Disk MG-5082SC Marine Transmission Ratio: 2.88:1 Centa CF-R-178 Torsional Coupling Electric Shift Solenoid |
| Your Price: | POR: 30% at time of order 30% at time of hull rotation (approximately ½ way through build process) 40% at time of shipping |
| Fuel Capacity, Transfer Rate, Lube Oil: | (1) 525 – gallon (approx.) fuel cell/transfer tank |
| Genset(s): | POR |
| Boat Location: | USA |
We Build to Special Features & Options to your needs! For Complete Options and Pricing call or Email us in the section below. Twin Cummins Model: QSL9-M’s
| |
| Contact Us: | Email Us |
| Call Us: | Bob - 954.224.2628 |

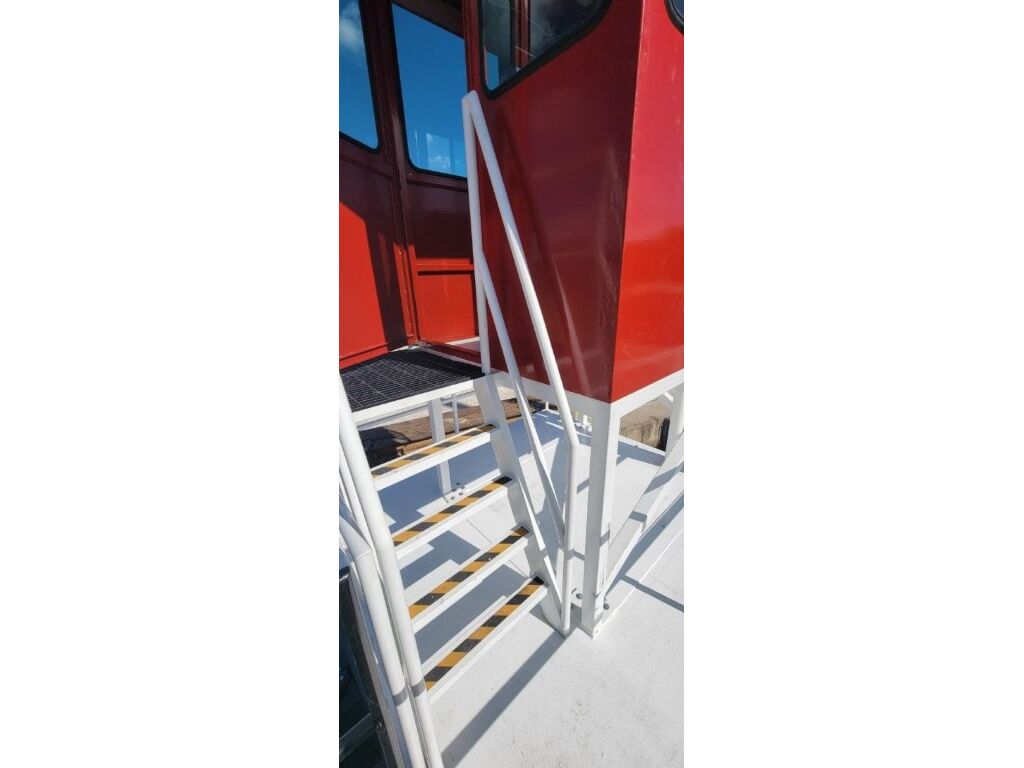

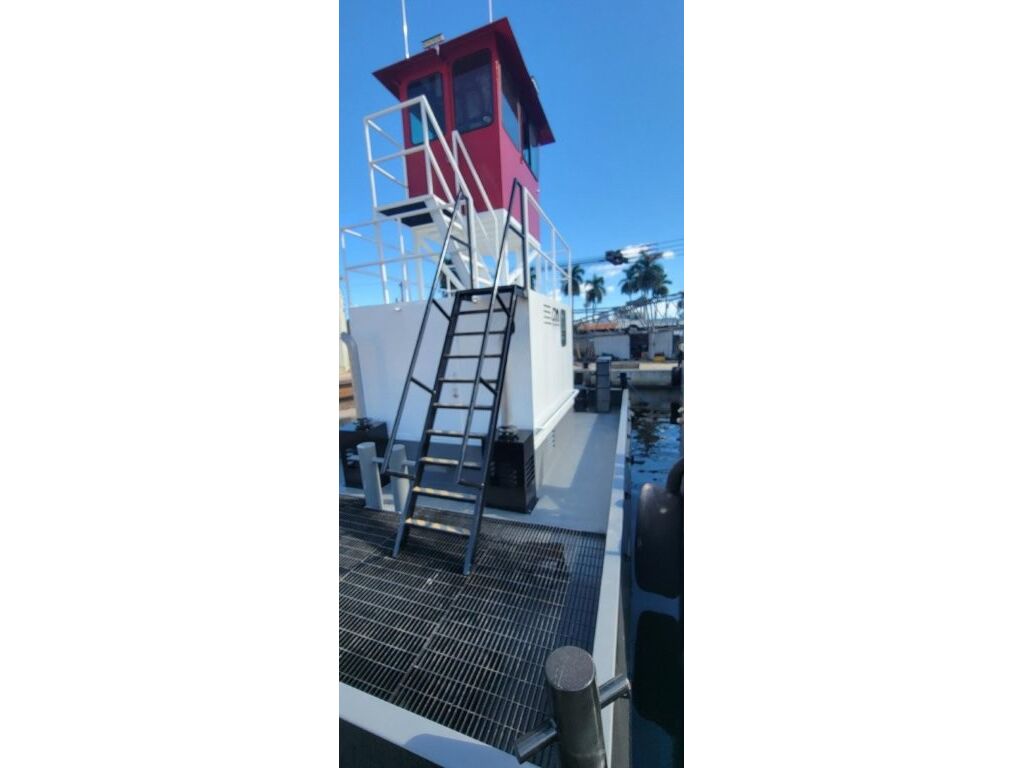

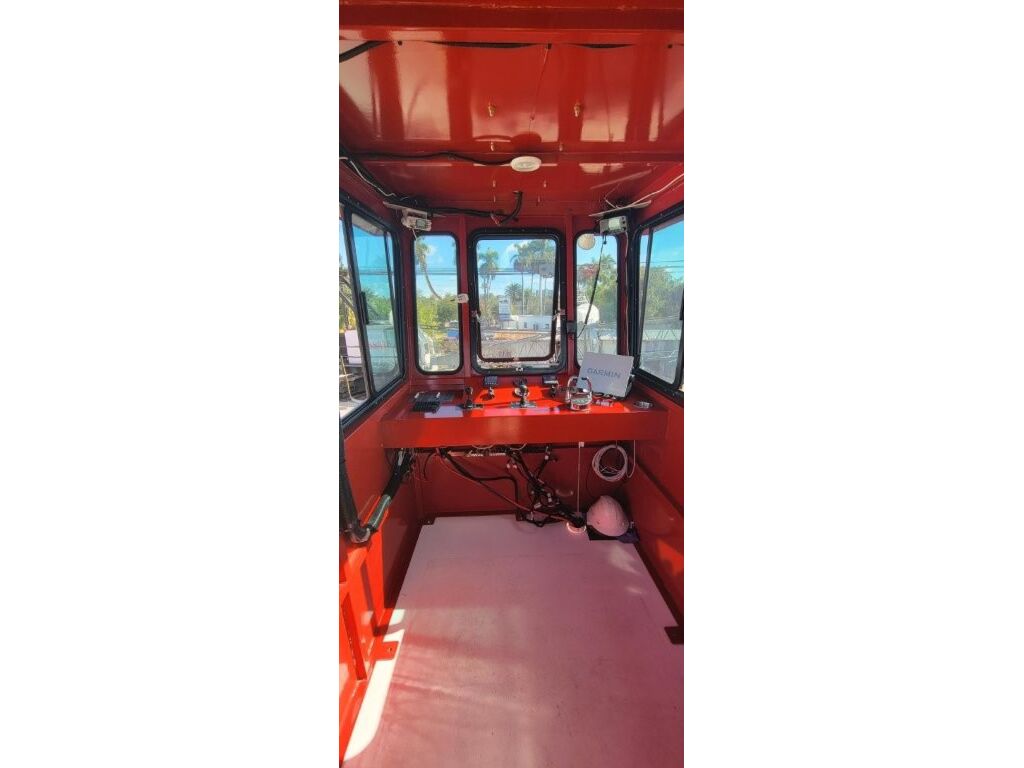

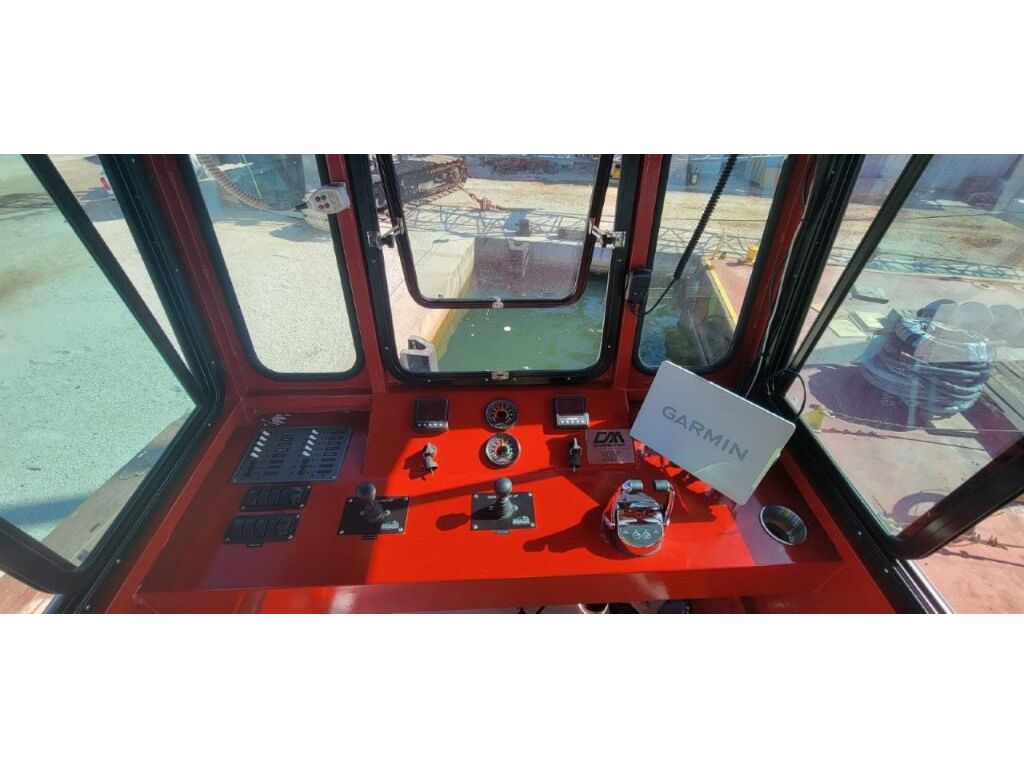

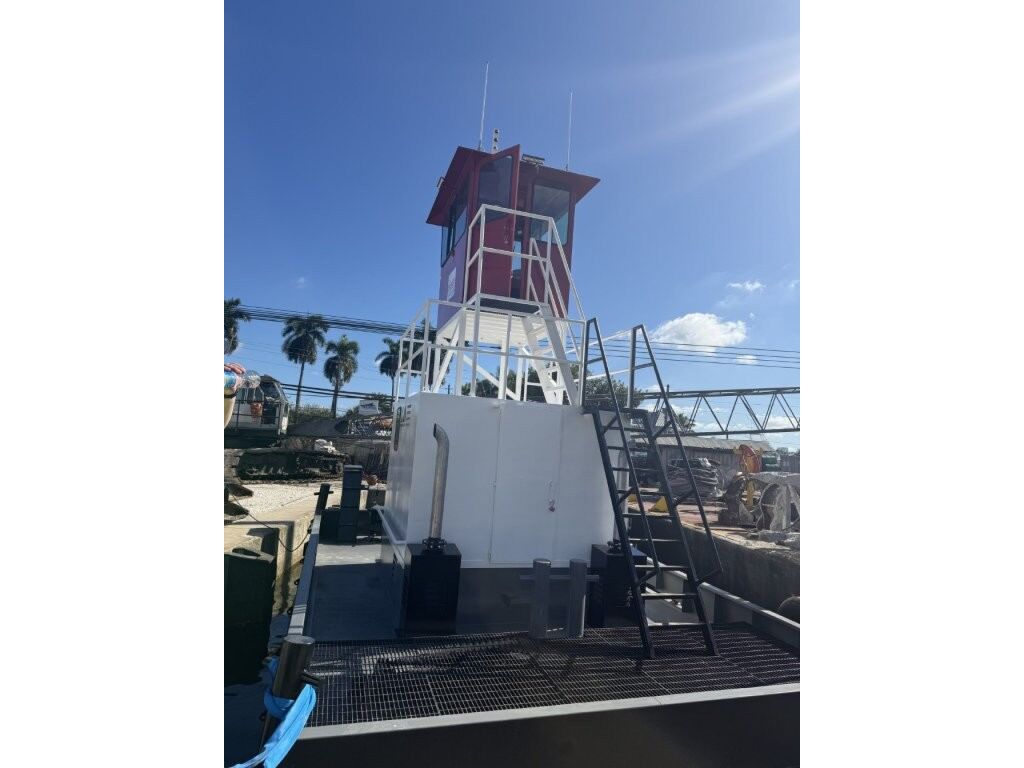

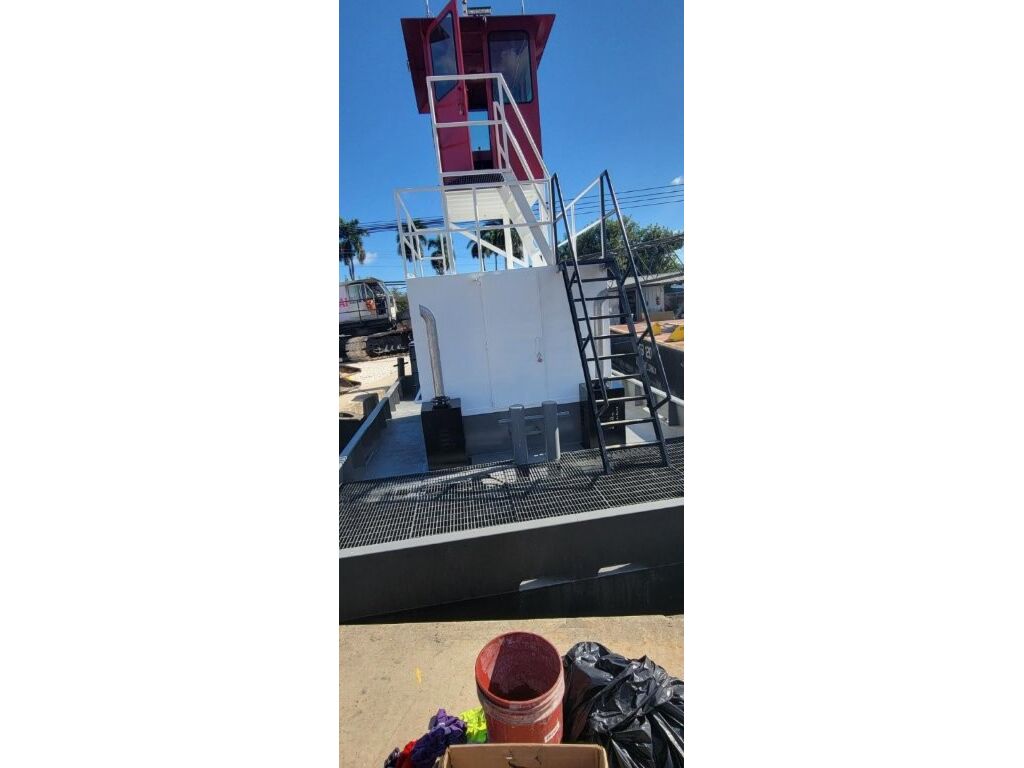

Pilot House
- 5’ W X 5’6” L X 7’ T
- (2) sliding windows, 1 on each front side of pilot house
- (1) top hinge swing open window in front center
- (8-9) TTL windows
- Dash mounted switch panels
- Wire chases built into cab structure
- Standard marine navigation lights, Red, Green, White, and Yellow if requested
- Removable pilot house for trucking
- Lockable door
- Eye height off waterline approx. 16 ft.

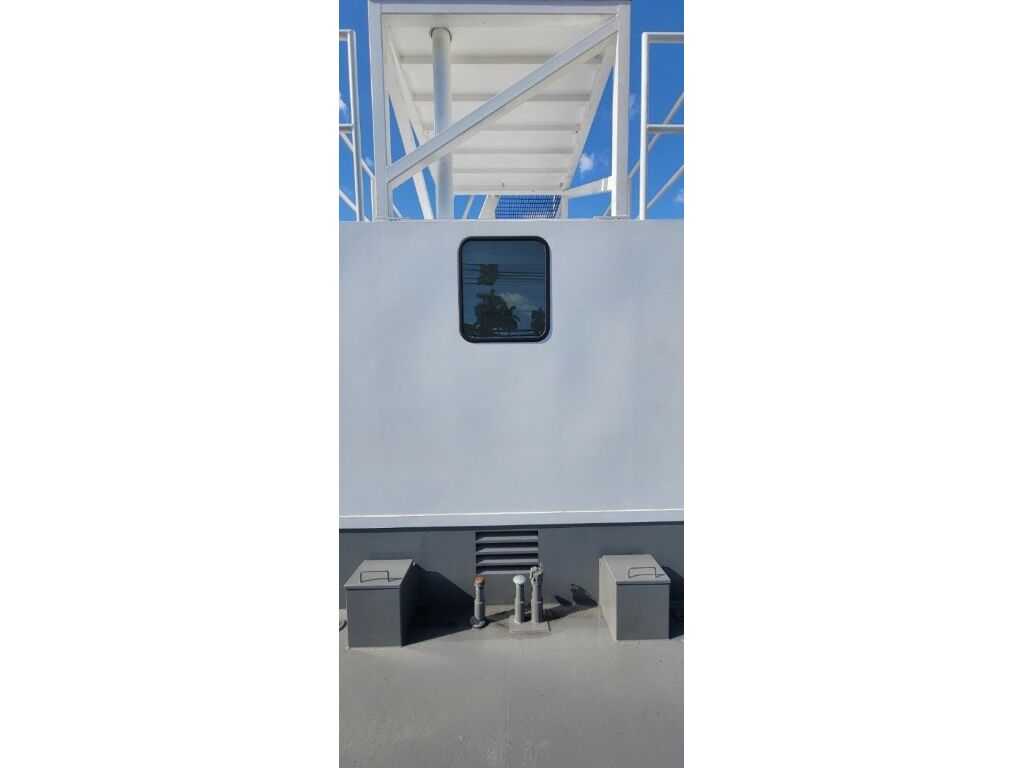

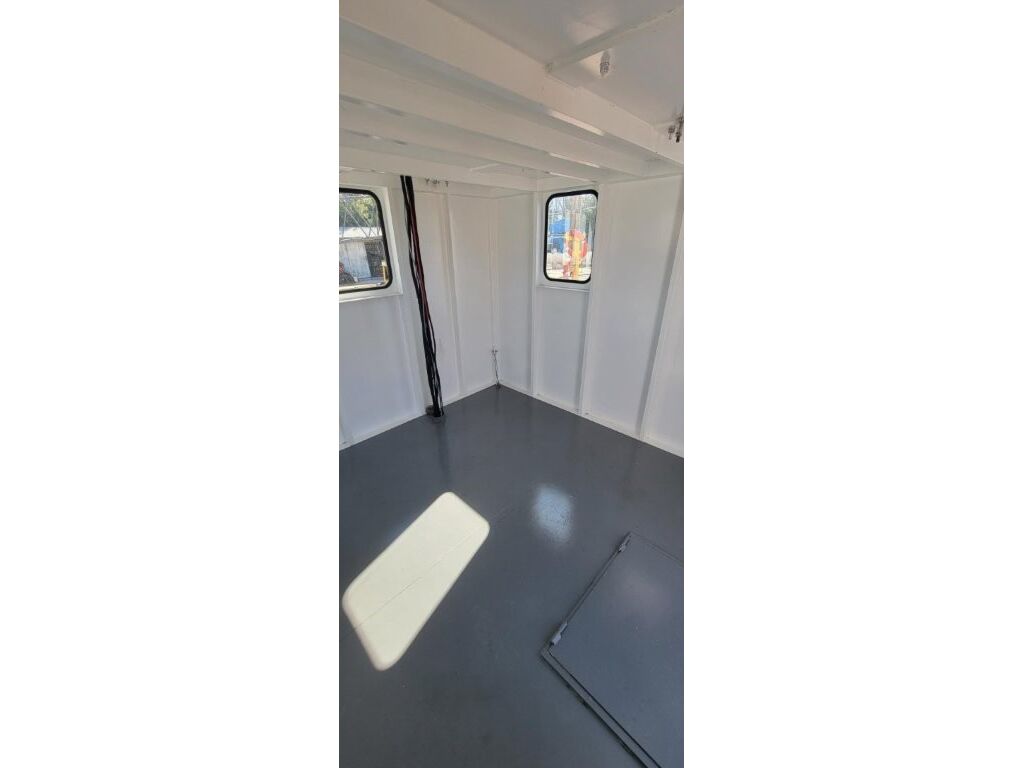

- Trunk Cabin
- Approx size 9’w X 9’l X 6’t
- 36” upper hand rail
- Deck painted with anti-slip material
- (3) windows
- (2) vents
- Lockable door
Finish
- Sand blasted (near white metal)
- Main hull (2) coats of Marine Epoxy
- Deck (2) coats of Marine Epoxy with anti-slip
Electronics:
- Electronics Package $16,500
- Furuno Navnet TZ Touch 2 multi-function display
- (2) VHF radios one of which sends and receives AIS messages
- Radar
- Workboats-USA, LLC. 820 HP Basic Spec sheet:
- Year: 2026 25’ X 14'6" x 16’ Truck-able Tug (2) QSL9-M Cummins 410 HP Each. Totalling 820HP.

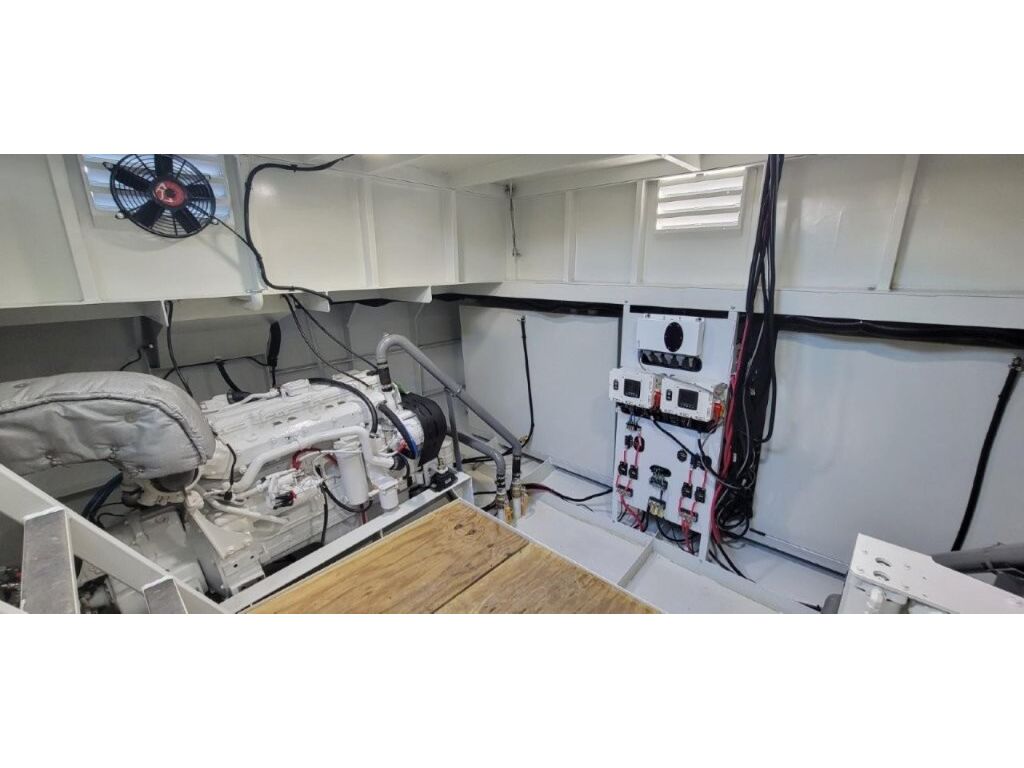

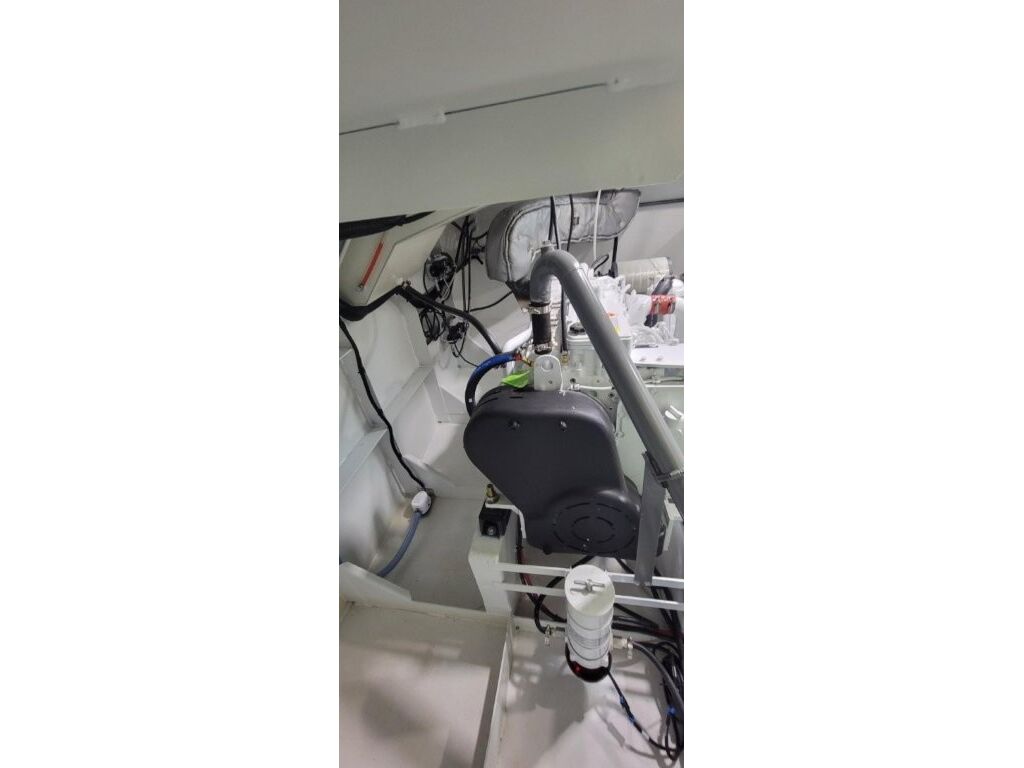

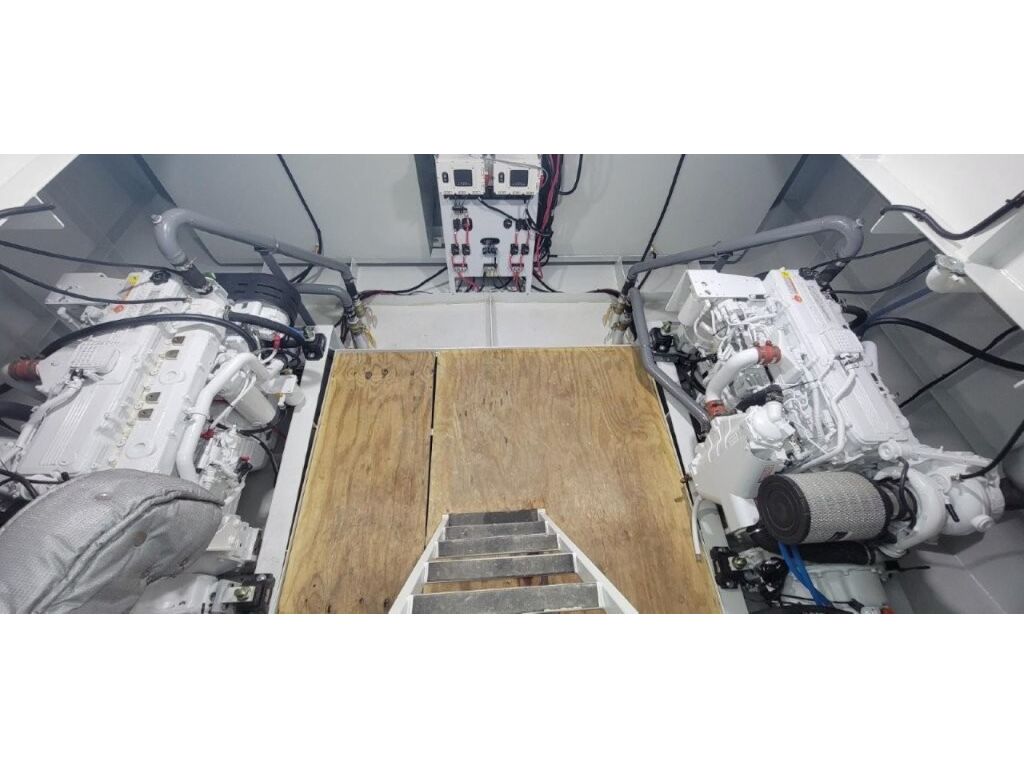

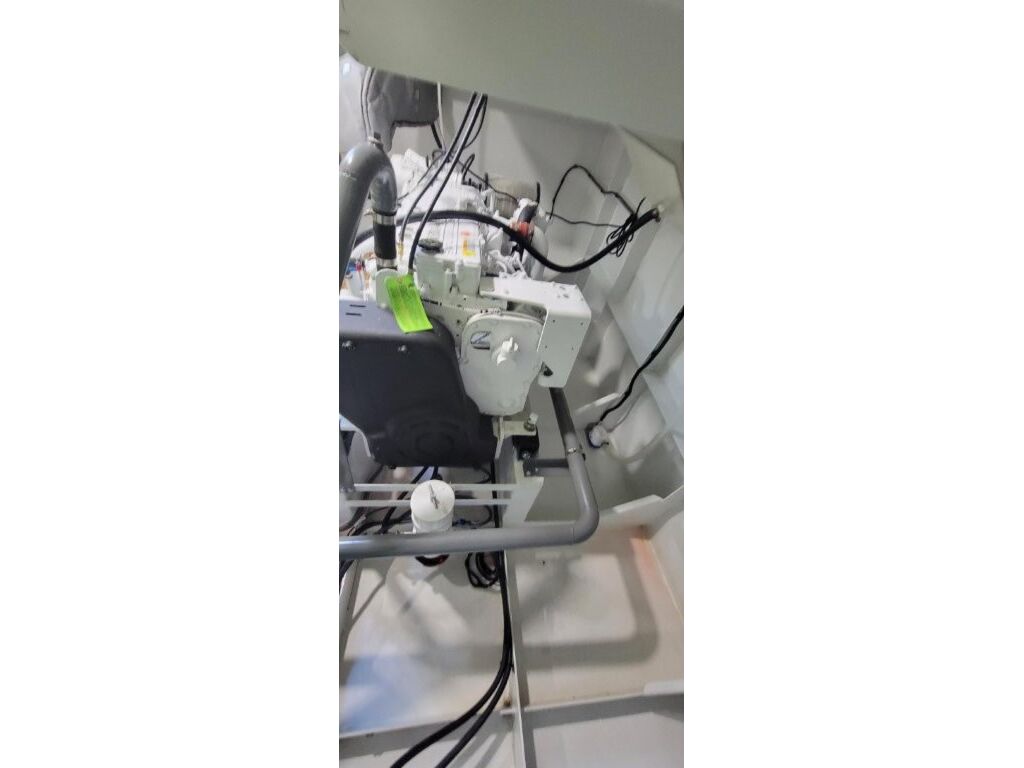

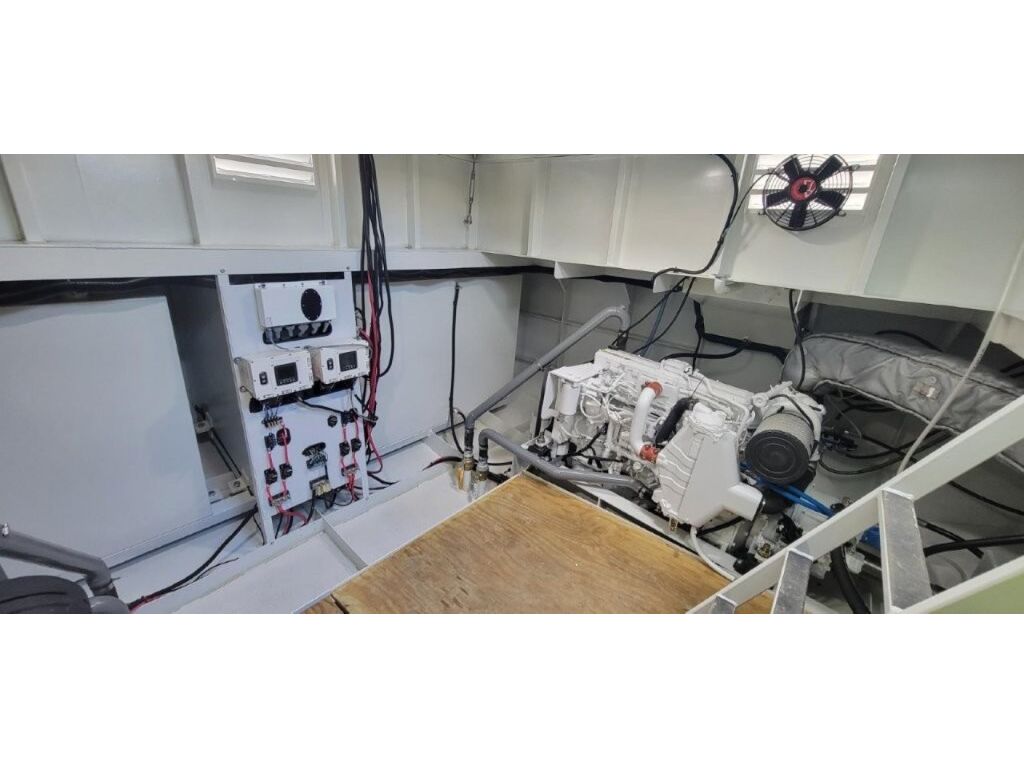

- Twin 410 HP Cummins Model: QSL9-M
- Rating Power: 410 @ 2100 RPM
- Peak Torque: 1162 Ft-lb @ 1400RPM
- Rating Type: MDC Rating
- Certification Level: EPA Tier 3
- Charging System: Delco 22SI - 12V / 160A
- Fuel System: Fuel Filter - 5 Micron, single spin on
- Fuel Water Separator: Single Racor 900MA with WIF sensor and harness
- Flywheel Housing: SAE 1 Dry
- Fresh air intake
- Twin Disk MG-5082SC Marine Transmission
- Ratio: 2.88:1
- Centa CF-R-178 Torsional Coupling
- Electric Shift Solenoid
- SAE "A" Pad Live PTO

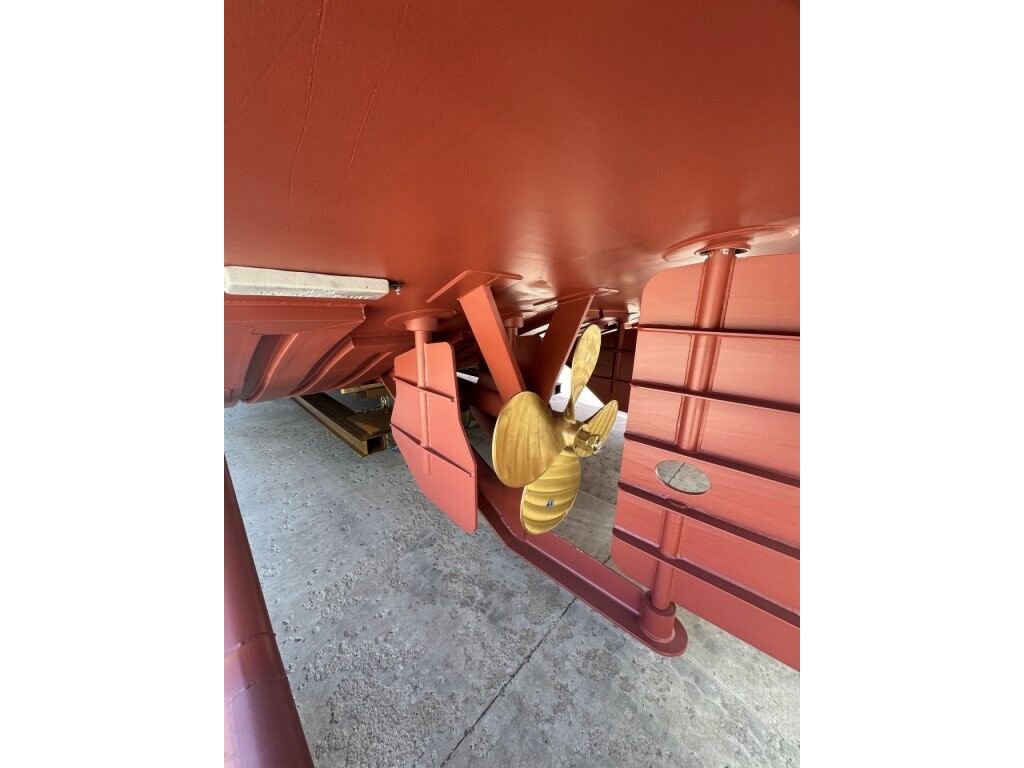

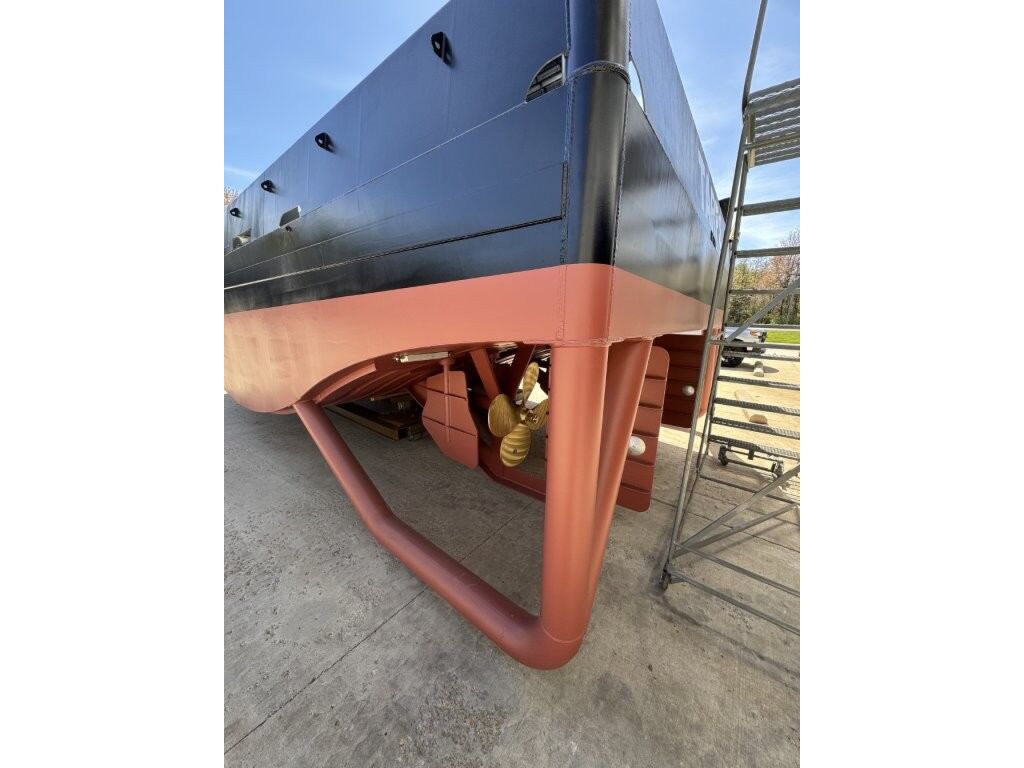

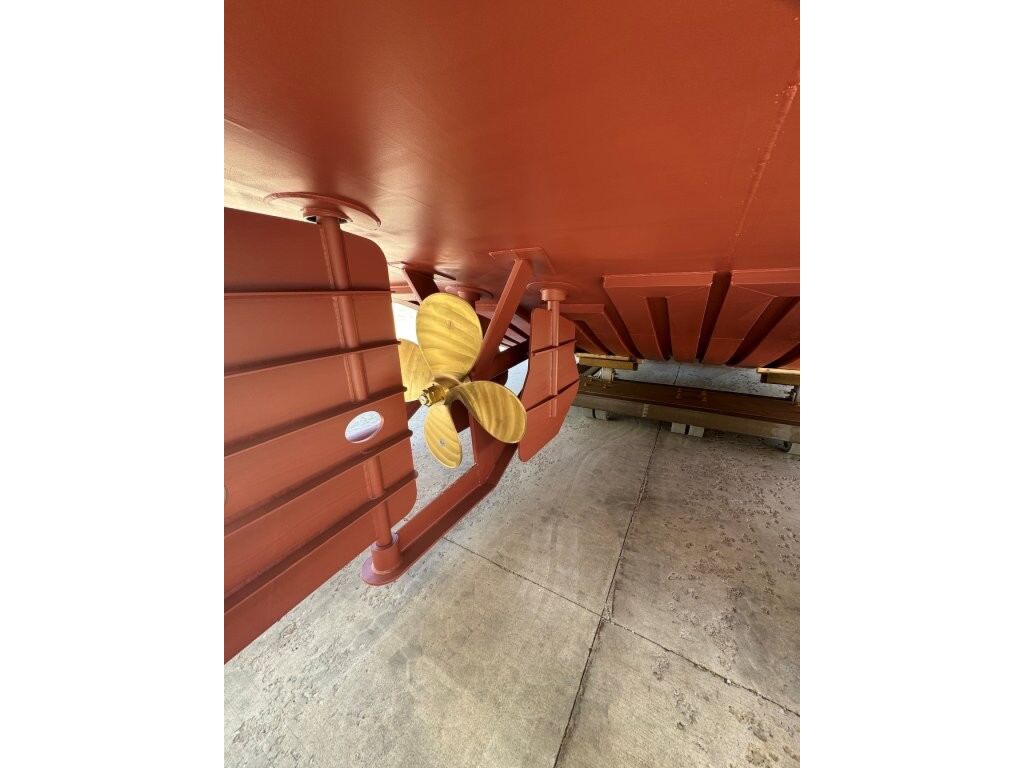

- Propellers (2)
- 34" diameter x 19" pitch four blade bronze wheels (TBD)
- Prop Shafts 2.5” Aquamet 17 stainless steel

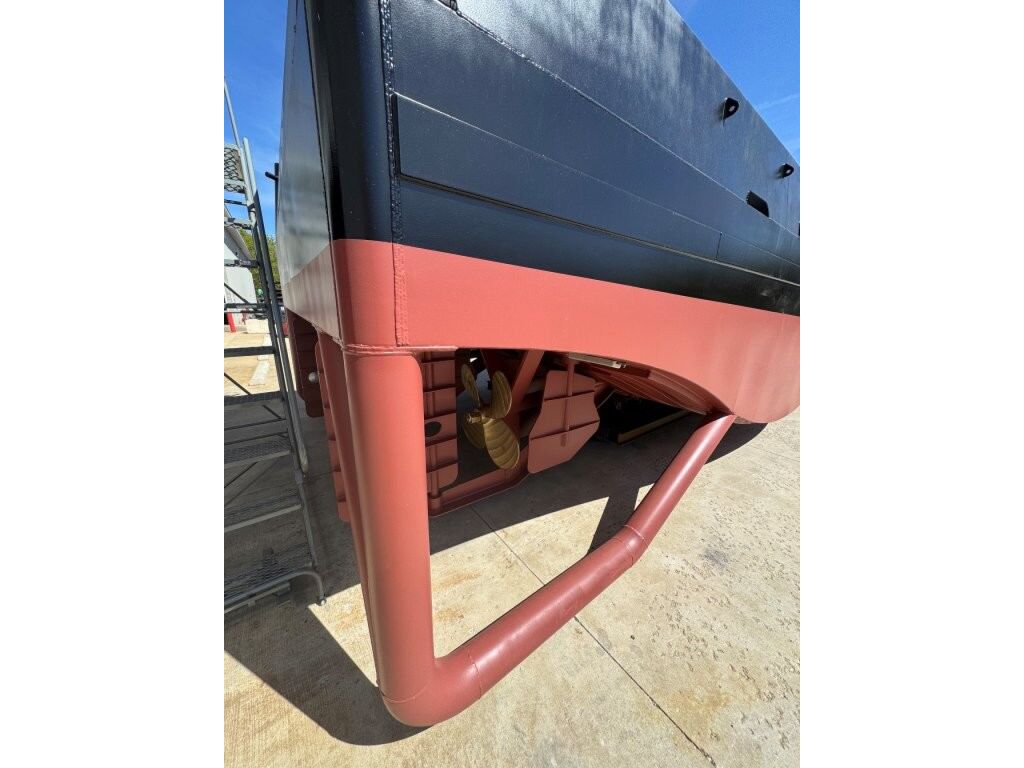

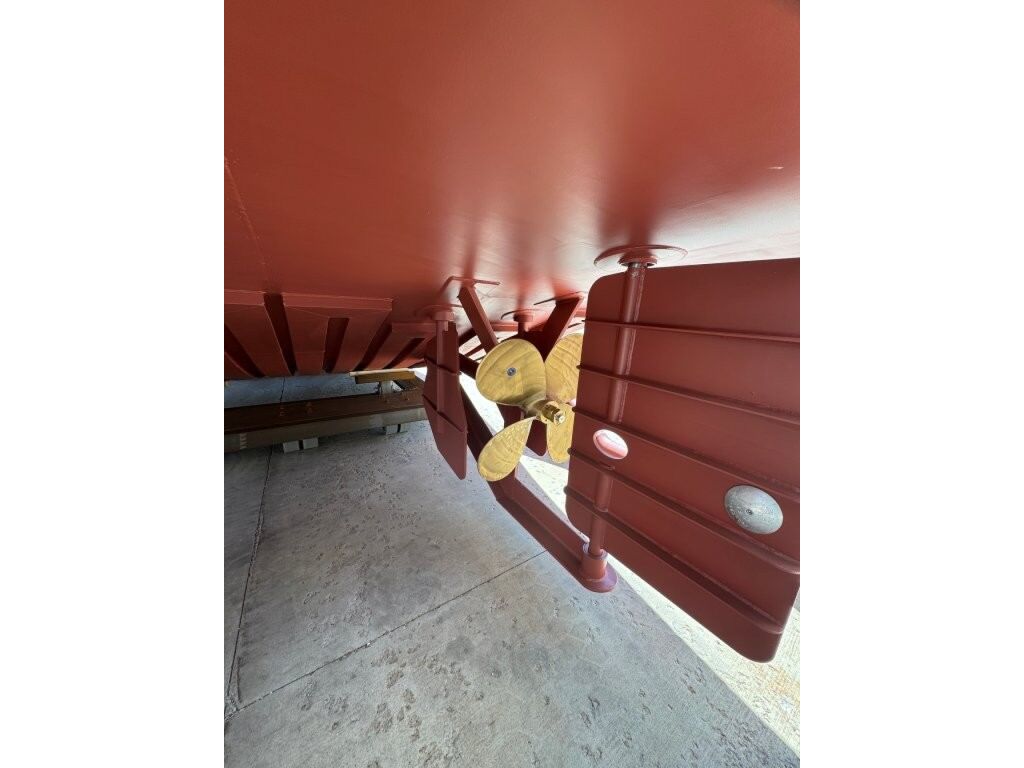

- Main Rudders Main rudder 45-degree pivot angle
- Main rudder shafts 2.25” 1045 carbon steel
- Main rudder stock 5/8” A36 plate

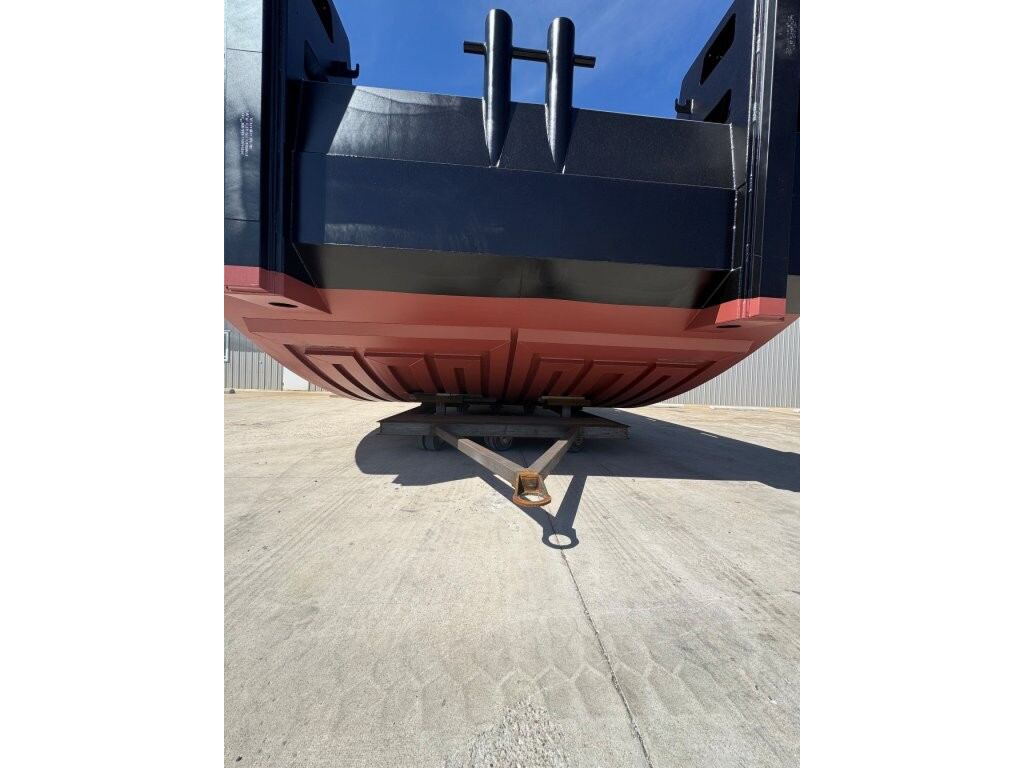

- Hull 16’ wide Optional from 14"6: Shown here in photos
- 6 X 8.2 structural channel keel coolers (160 linear feet each engine)
- 1 - Electro-hydraulic steering system 12vdc; PTO driven pumps off Twin D
- System configured as 12vdc, non-follow up only, no auto p
- Terms:
- 30% at time of order
- 30% at time of hull rotation (approximately ½ way through build process)
- 40% at time of shipping
