New 25' 610 HP Truckable Pushboat Tug On Order

All Ads by User | Add to Favorites | Reply to Ad | Tell Your Friends

Ad Number:	994
Builder:	Custom Build
Year:	2026
Model:	Truckable Push Boat Tug
Length:	25'11"
Beam:	14'6" to 16' Available
Light Draft / Max Draft /Light Ship Weight/:	4'6"

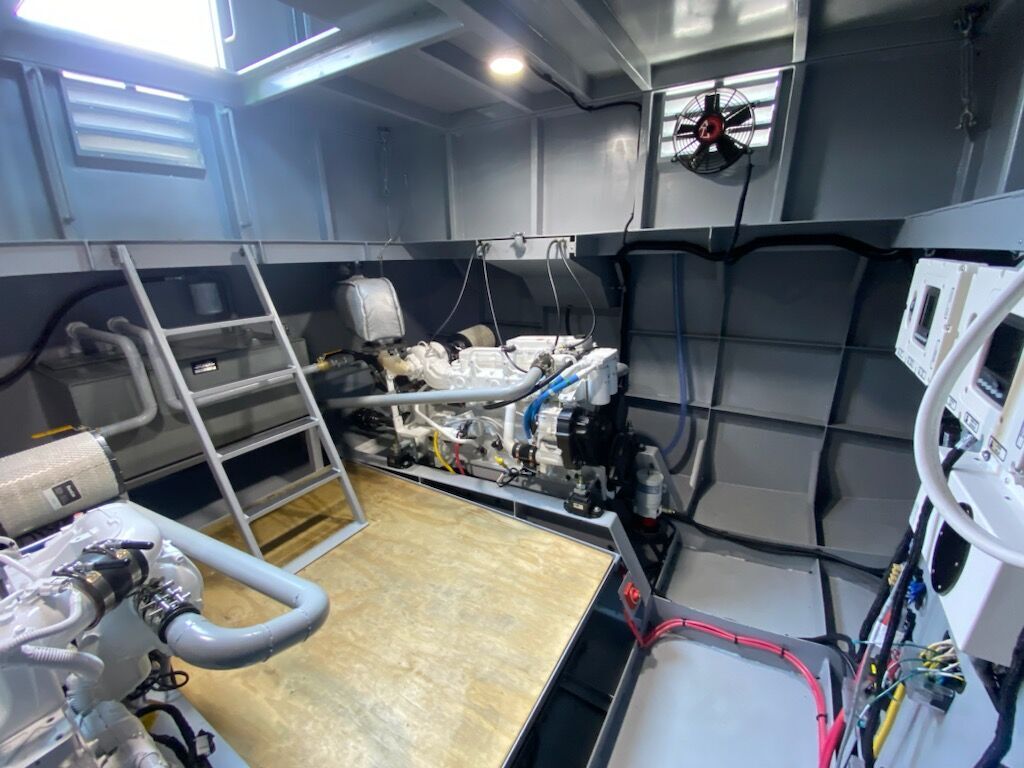

Propulsion/ Props/:	• Engine Model: QSB 6.7 305MDI • Rating Power: 305HP @ 2600RPM • Peak Torque: 866 Ft-lb @ 1700RPM • Rating Type: MD Rating • Certification Level: IMO Tier ll, EPA Tier 3
Your Price:	POR: 30% at time of order 30% at time of hull rotation (approximately ½ way through build process) 40% at time of shipping
Fuel Capacity, Transfer Rate, Lube Oil:	525 Gallons
Genset(s):	Optional
Boat Location:	Midwest

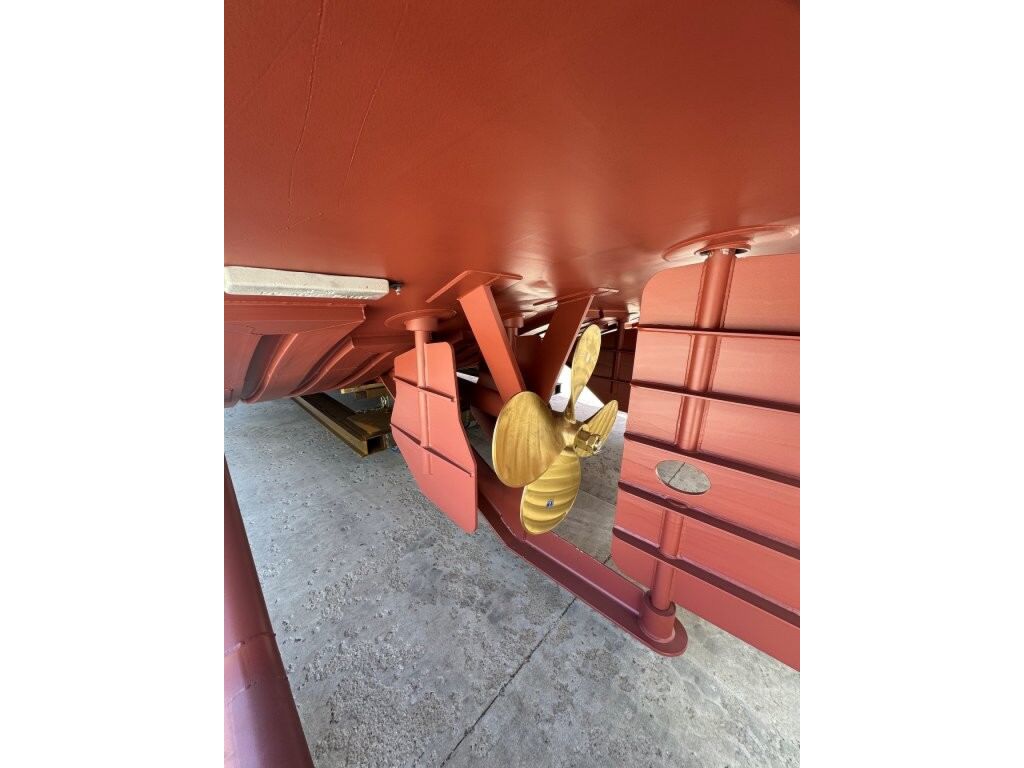

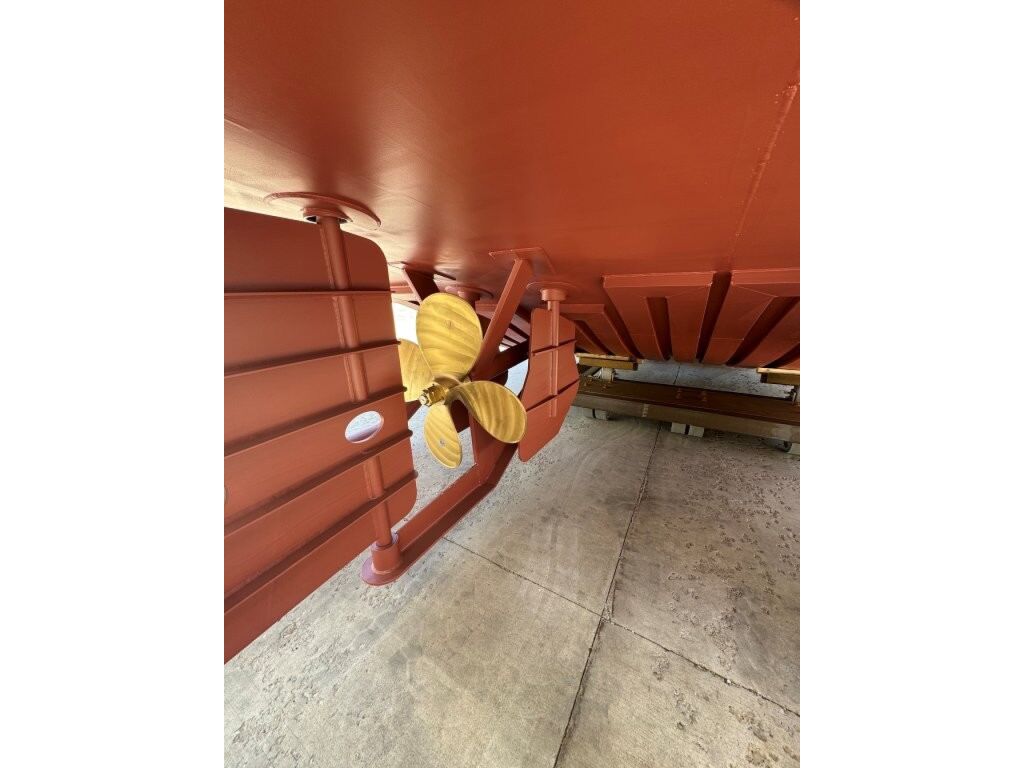

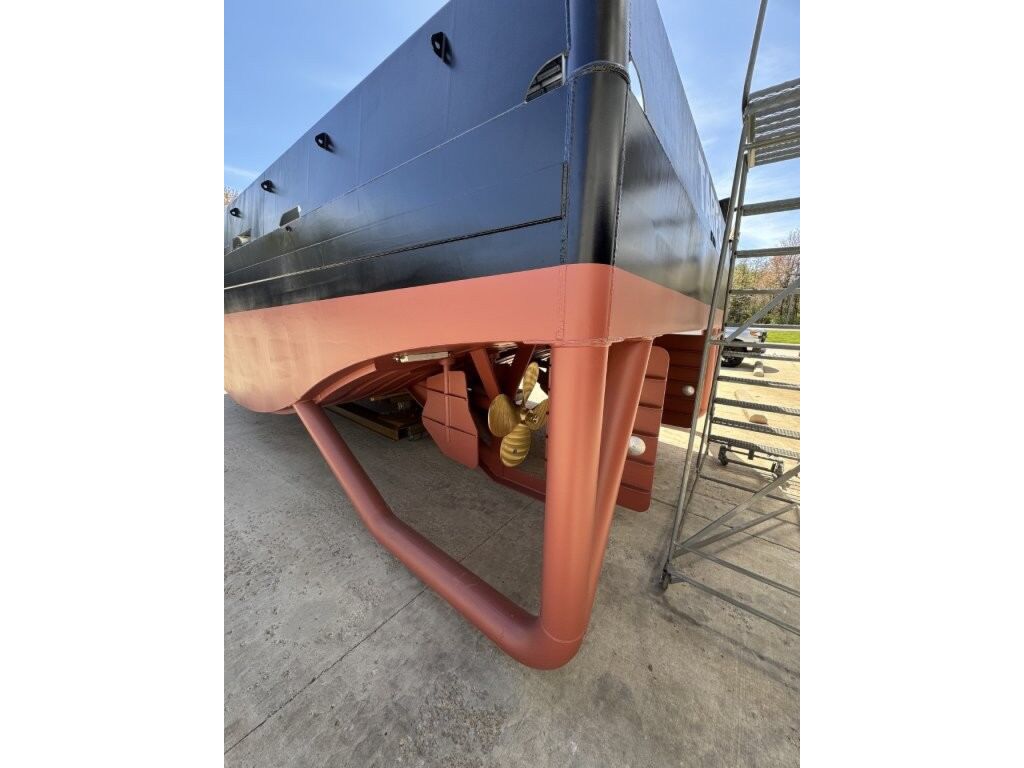

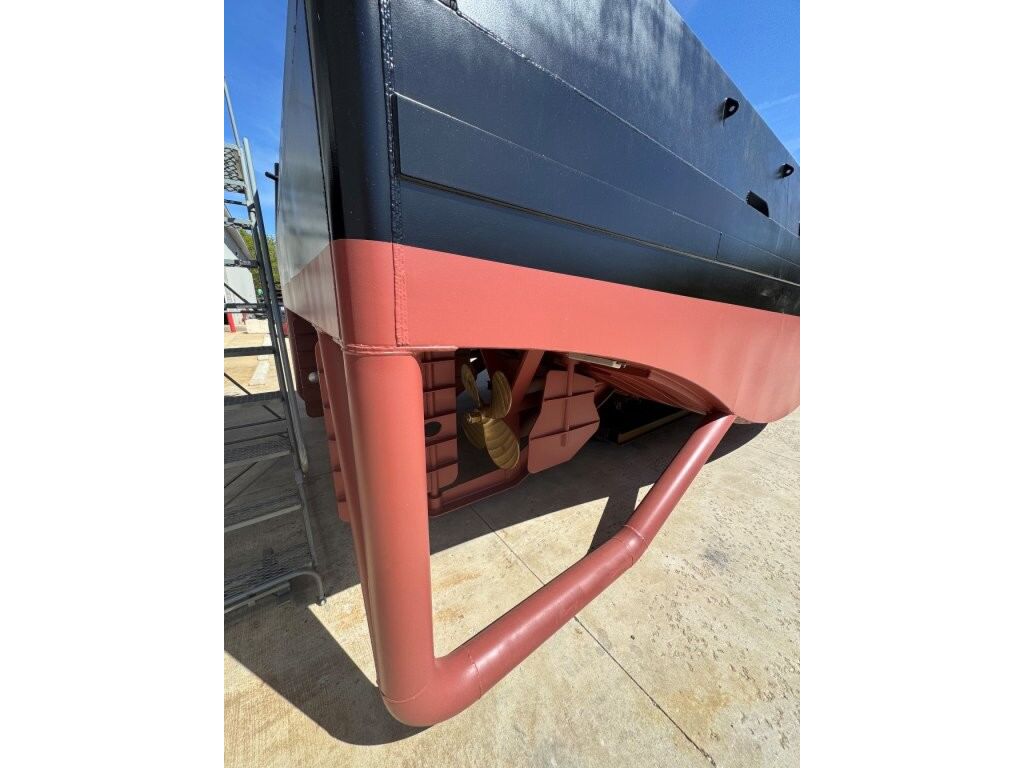

Special Features: 1 - Electro-hydraulic steering system 12vdc; PTO driven pumps off Twin Disk MG-5075SC Marine  Transmission System configured as 12vdc, non-follow up only, no auto pilot. 1 – 50-gallon (36” l x 24” w x 17”h) reservoir w/ all tank accessories – Vickers pumps, SAE a pad, * tooth spline; integral flow & relief valves, outfitted w/ gauges & isolators. 2 – check valves 2 – 12vdc directional control valve w/ subplate 2 – Skipper NON follow up lever 2 – Telcor feedback unit w/ linkage 2 – Telcor master RAI 12vdc (Rudder Angle Indicator) 4 – Skipper 3 x 18 cylinders, w/ mounting brackets and 1” 17-4ph stainless pins each end. 1 – set, hoses, and adapters for valve & cylinders only, due to pump mounting. Shut off valve on each pump in case of pump malfunction Options Shown:   Flanking rudder 40-degree pivot angle Larger fuel capacity 700 gallons (2) 350 gallon tanks A-Frame with 5 ton capacity 3/8" bottom plate with 5/16" side plate for hull Stump jumpers 6" schedule 40 pipe
Contact Us:	Email Us
Call Us:	Bob - 954.224.2628

Accommodations:

Pilot House

• 5’ W X 5’6” L X 7’ T
• (2) sliding windows, 1 on each front side of pilot house
• (1) top hinge swing open window in front center
• (8-9) TTL windows
• Dash mounted switch panels
• Wire chases built into cab structure
• Standard marine navigation lights, Red, Green, White, and Yellow if requested
• Removable pilot house for trucking
• Lockable door
• Eye height off waterline approx. 16 ft.
• Trunk Cabin:
• Approx size 9’w X 9’l X 6’t
• 36” upper hand rail
• Deck painted with anti-slip material
• (3) windows
• (2) vents
• Lockable door

---

Electronics:

• Dash mounted switch panels
• Telcor master RAI 12vdc (Rudder Angle Indicator)
• Wire chases built into cab structure
• Standard marine navigation lights, Red, Green, White, and Yellow if requested
• Optional Garmin/Furuno Electronics Package

---

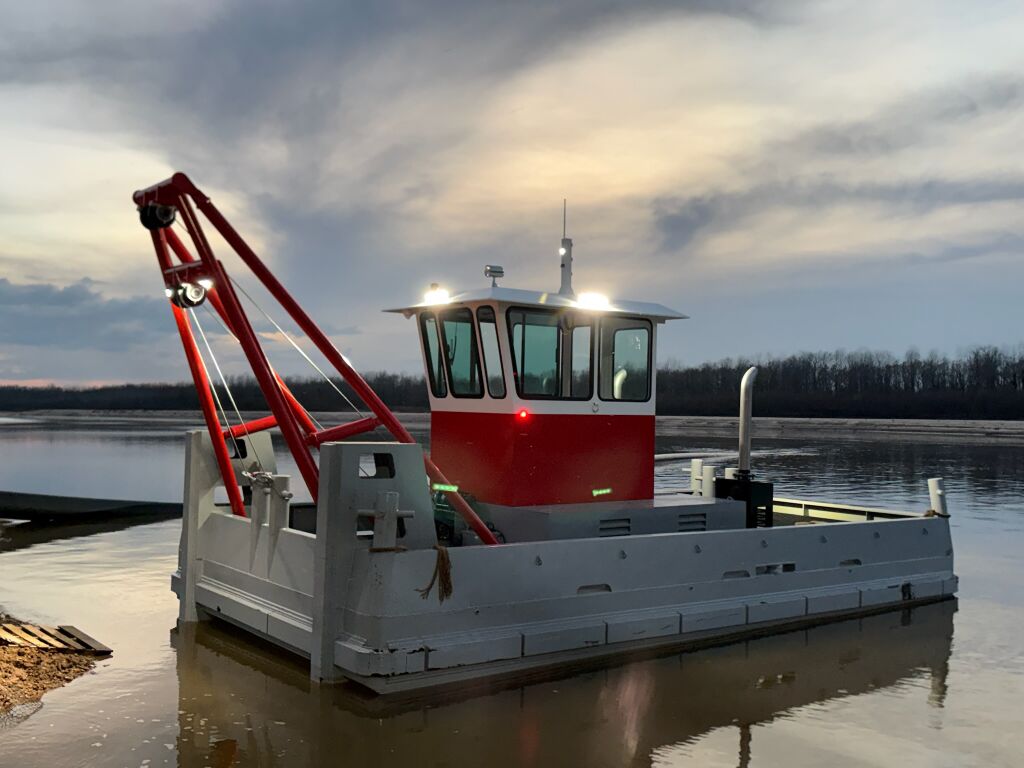

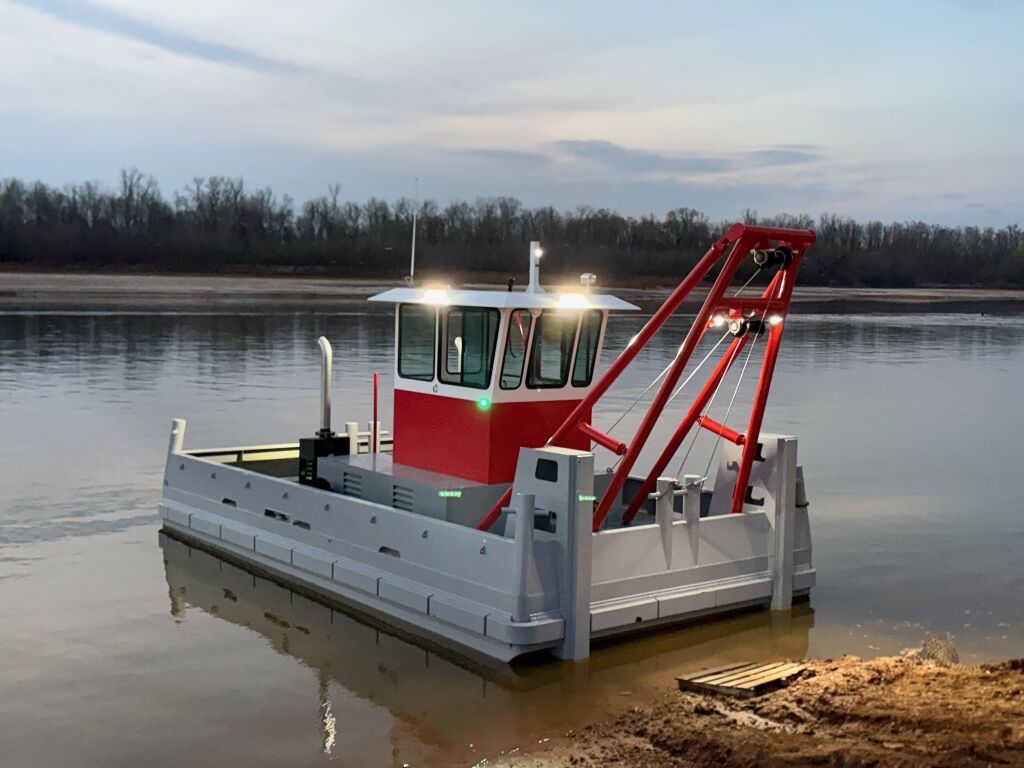

Our custom built to order  truckable tugs are  small but strong, compact designed vessels made to be transported by road on a truck, allowing them to be deployed in various locations without needing to be launched from a major port. Key features include an undersized length that they do not comply to USCG regulations reuiring a  licensed Captain. Equipped with detachable  pilot houses and sized to fit  within highway limits (often under 14 feet wide), and specialized designs that enable them to be quickly moved from water to truck for transport to different job sites. We also build in 16' wide versions as well.

---
