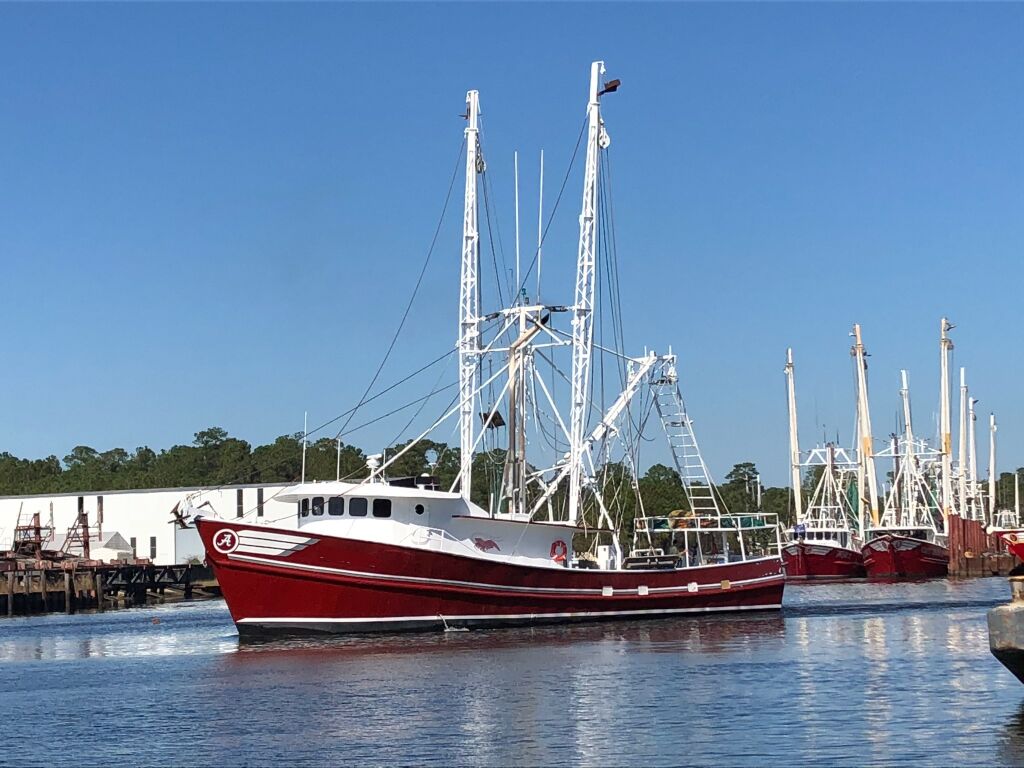

90' Steel Freezer Trawler For Sale


Page Views: 1224
All Ads by User | Add to Favorites | Reply to Ad | Tell Your Friends
Ad Number: 948
Year: Major top to bottom Electronics, Wheelhouse, Exterior Refit & Maintenance 2021-2022 Including Cummins KTA19 M3 Top End and Main Bearing Overhaul
Model: Steel Freezer Trawler
Length: 90'
Beam: 22.8'
Light Draft / Max Draft /Light Ship Weight/: 12'2"

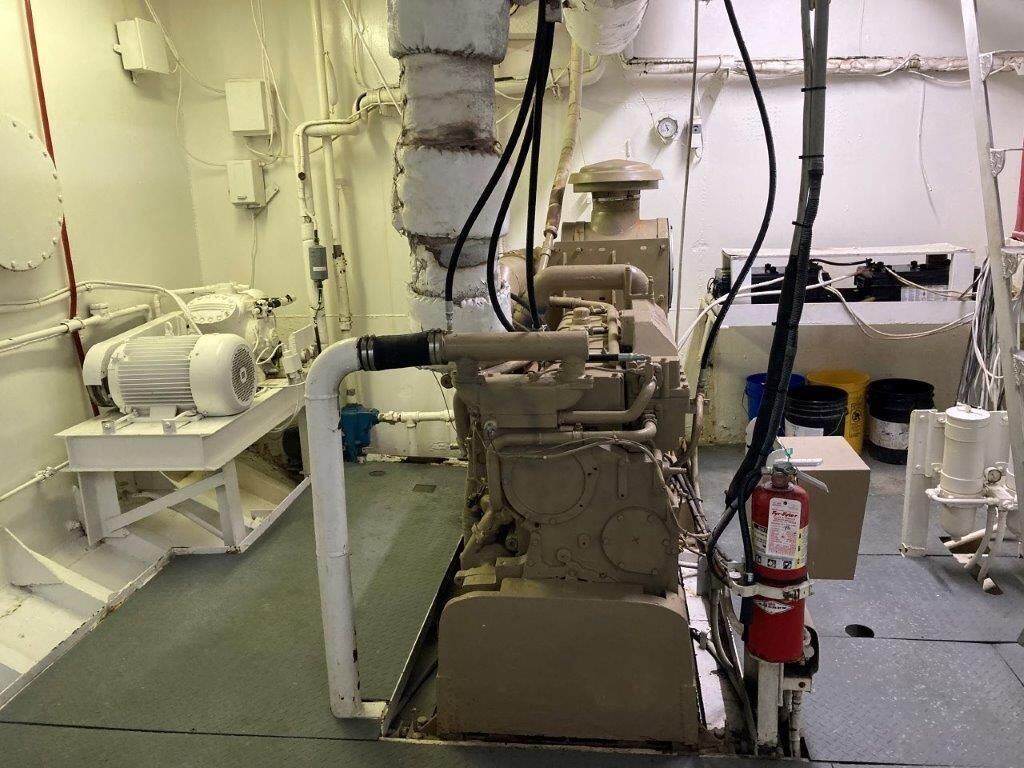

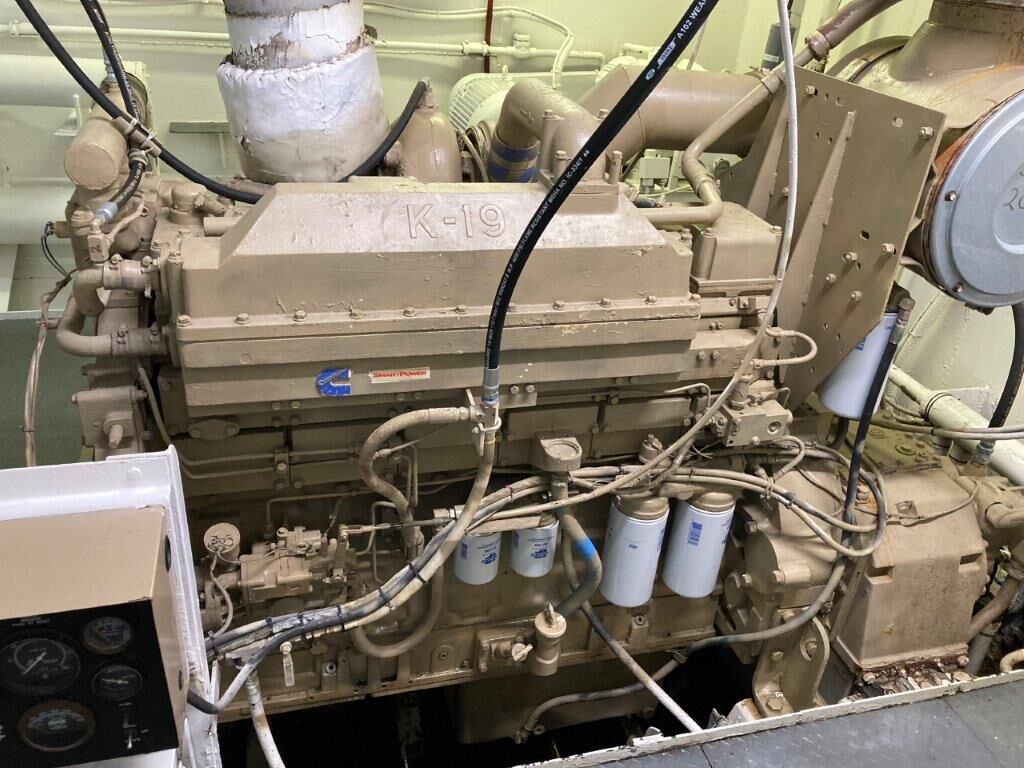

Propulsion/ Props/: Vessel is powered by a single 600HP, 2000 Hour Cummins model KTA19 M3 Marine Diesel. Speed to 10 Knots @1800 RPM. The engine drives a 69" diameter x 68 fixed pitch Rice bronze propeller within a Kort Nozzle through a ZF model ZFW1800 marine gear (transmis
Average Used Price$: $485,000.00
Your Price: $485,000.00 / Offers solicited upon General Inspection to Direct Buyers Only
Fuel Capacity, Transfer Rate, Lube Oil: Onboard Currently 14,000 Gallons. 4 welded steel construction MISCELLANEOUS TANKS : 1-Lube Oil Tank, capacity 140 gallons (reported) . 1-Waste Oil Tank, capacity 110 gallons (reported) . 1 Hydraulic Steering Tank, capacity 40 gallons (estimated) Poly Sewa

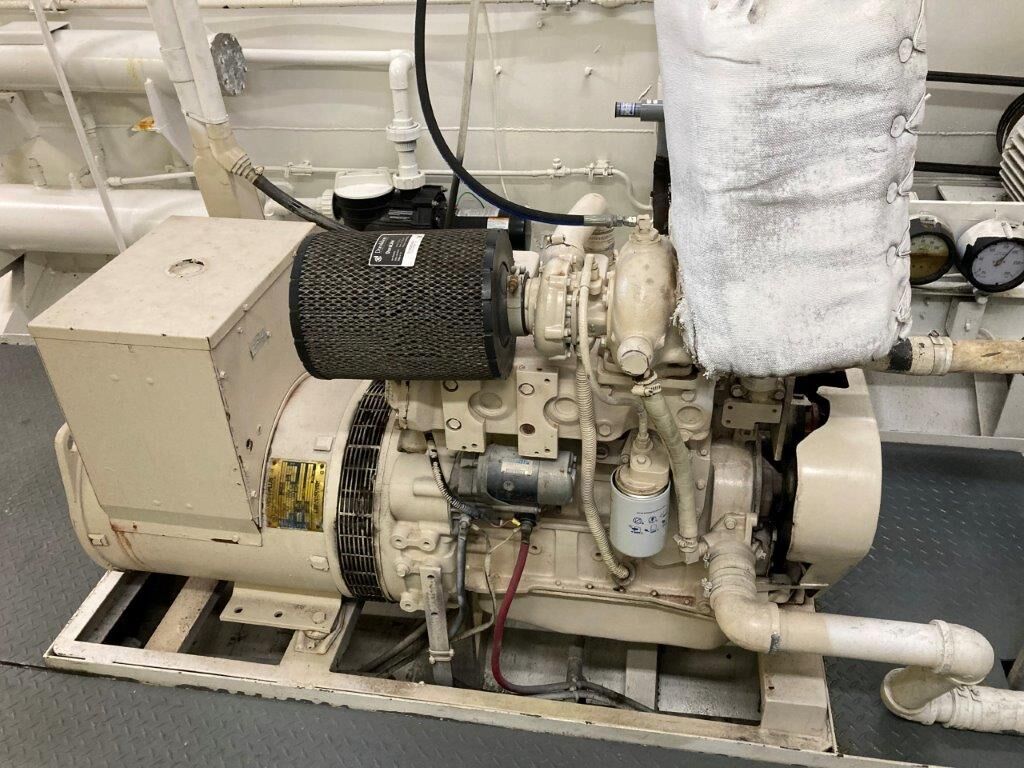

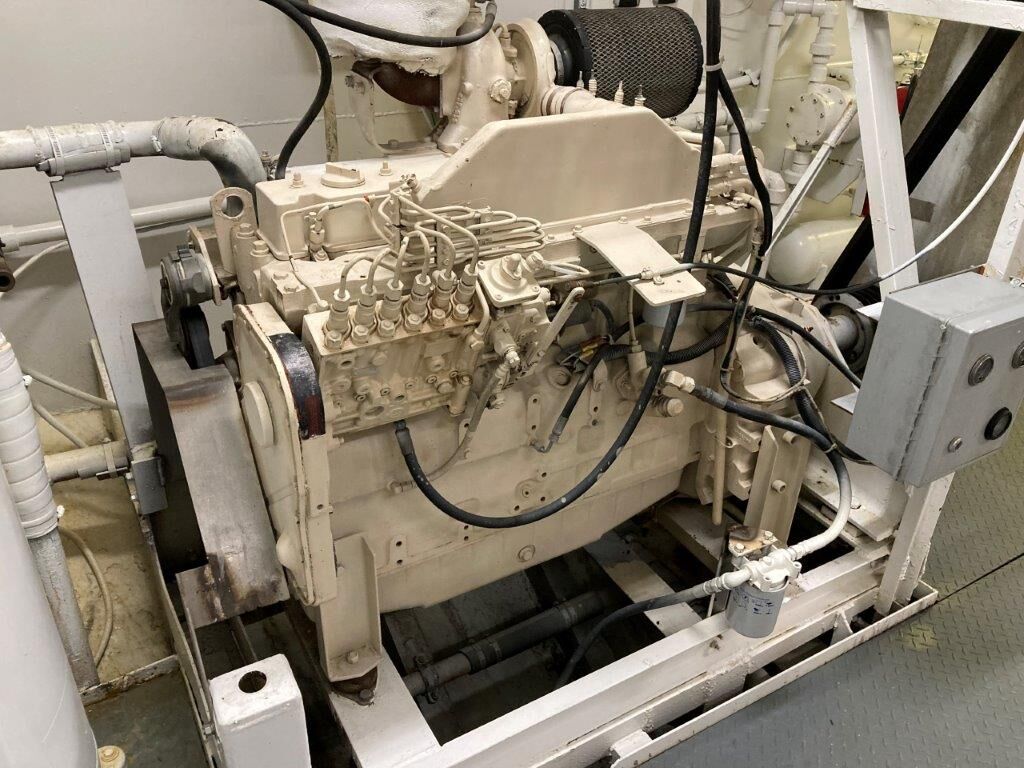

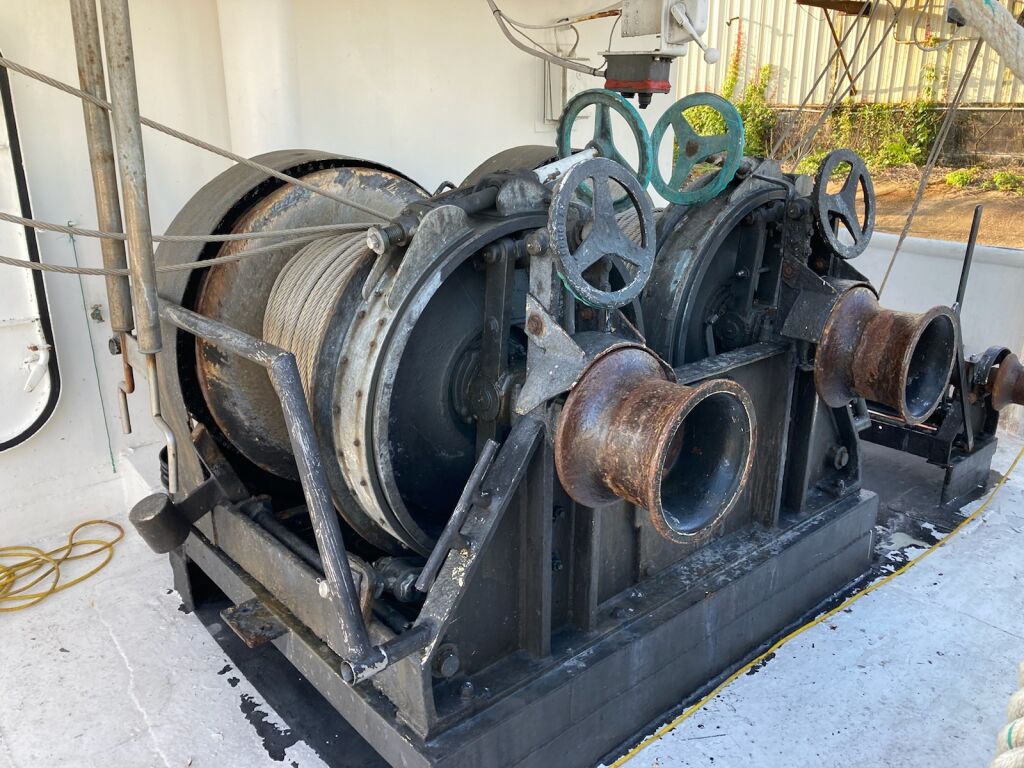

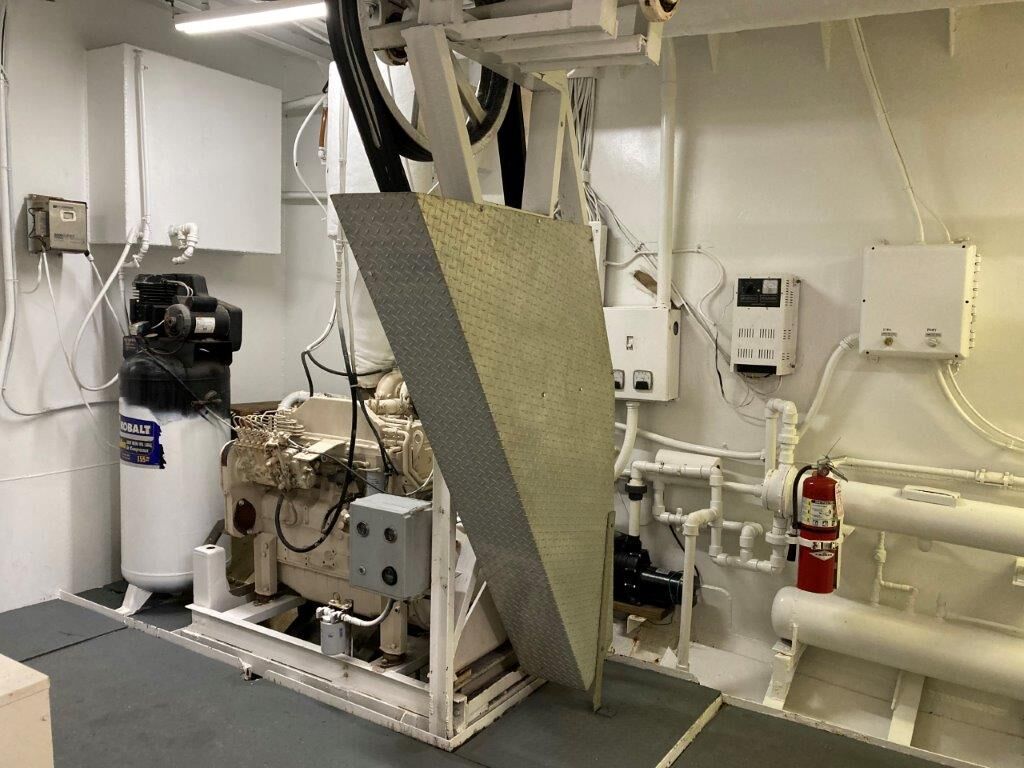

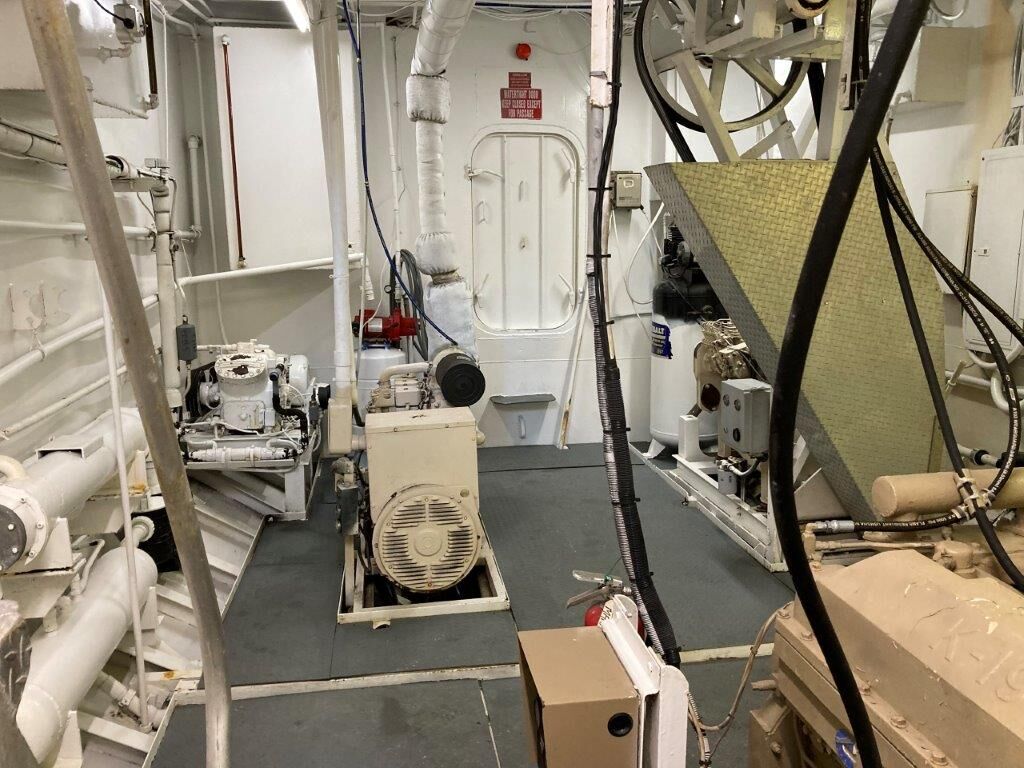

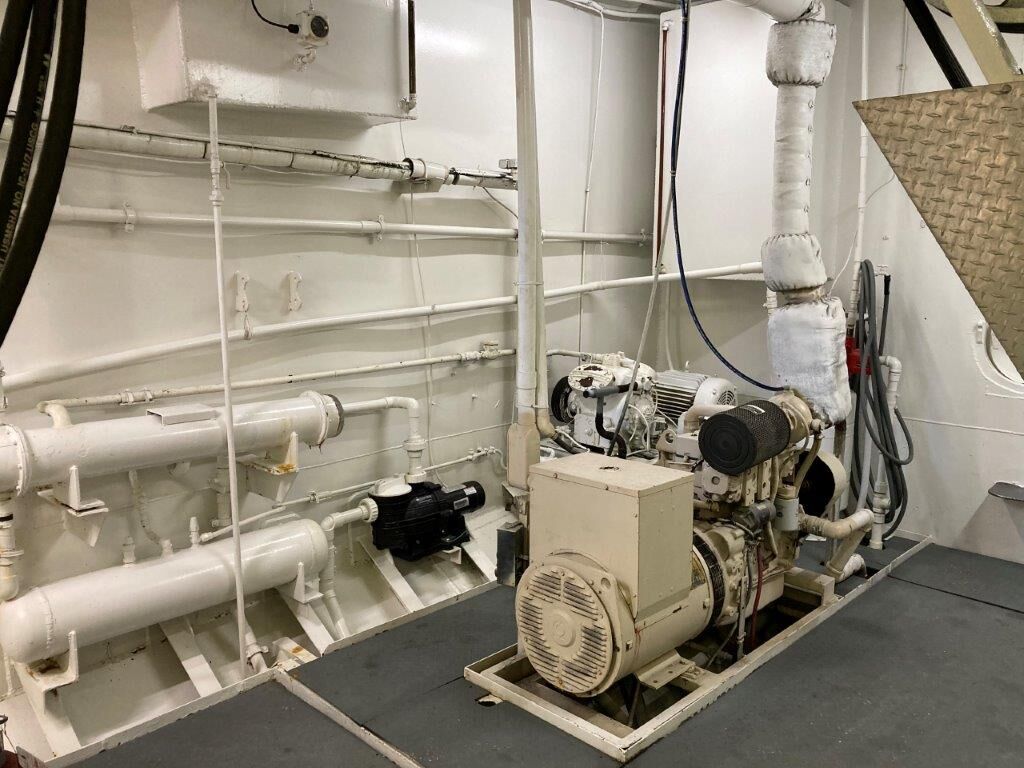

Genset(s): Vessel is equipped with a single Marathon Electric model 361PSL1602r 50 KW 208 VAC, 3 phase, 60 Hertz generator driven by a Cummins model 4BT3. Vessel is also equipped with a single Cummins model 6CTA8 driving the Trawl Winches
Deck Space/ Cargo Capacity / Winches, Crane & Other Equipment: CARGO FREEZER SYSTEM: Vessel is fitted with a 65,000# cargo freezer system consisting of two (2) Carrier model 5F40 compressors each driven by a 20 HP Baldor 230/460 VAC, 3 phase electric motor.
Water / Liquid & Dry Mud Caps: 1 welded steel construction potable water tank, 7,000 gallons approximate total capacity which is integral with the hull .
GT/NT/ Bollard Pull & Towing Equipment: 99 Net Tonnage / Gross Tonnage 145
Accommodations:

Accommodations Include:

DECKHOUSE CONSTRUCTION & ARRANGEMENT :

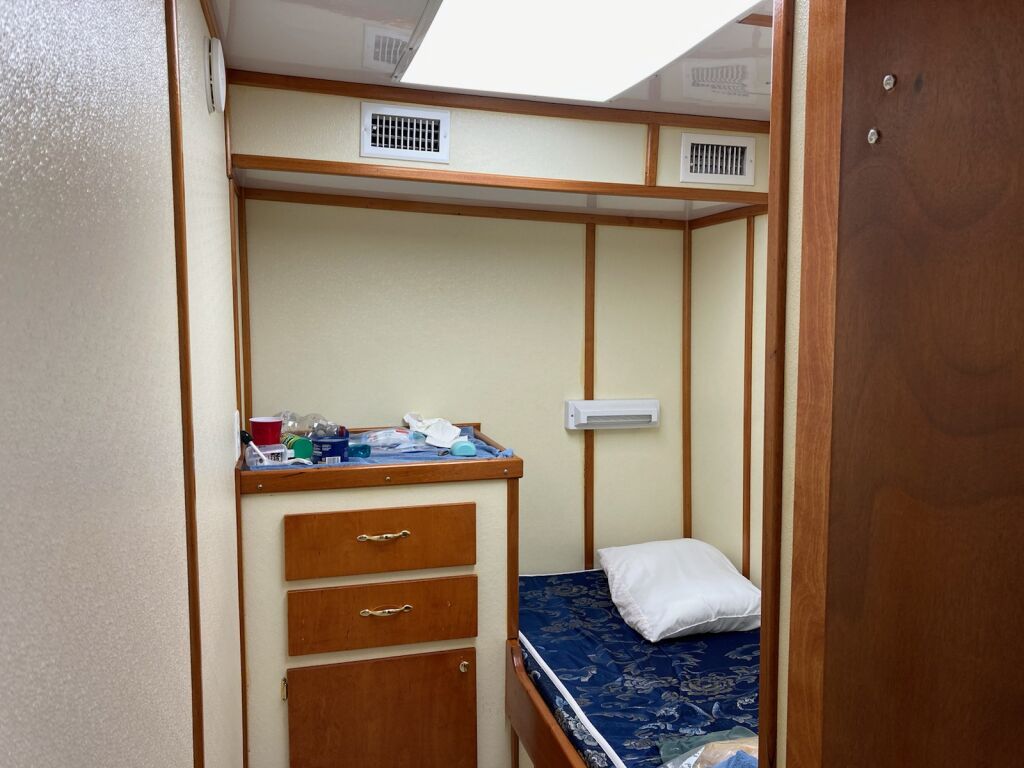

Staterooms and Pilot House euipped with Reverse Cylce A/C.

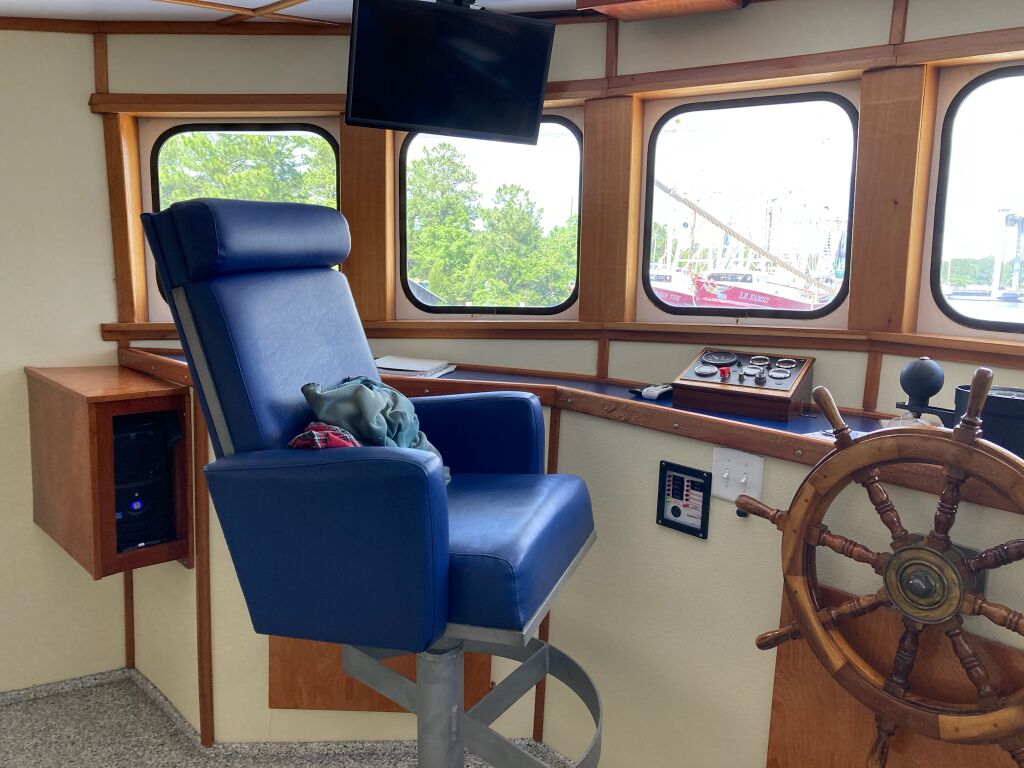

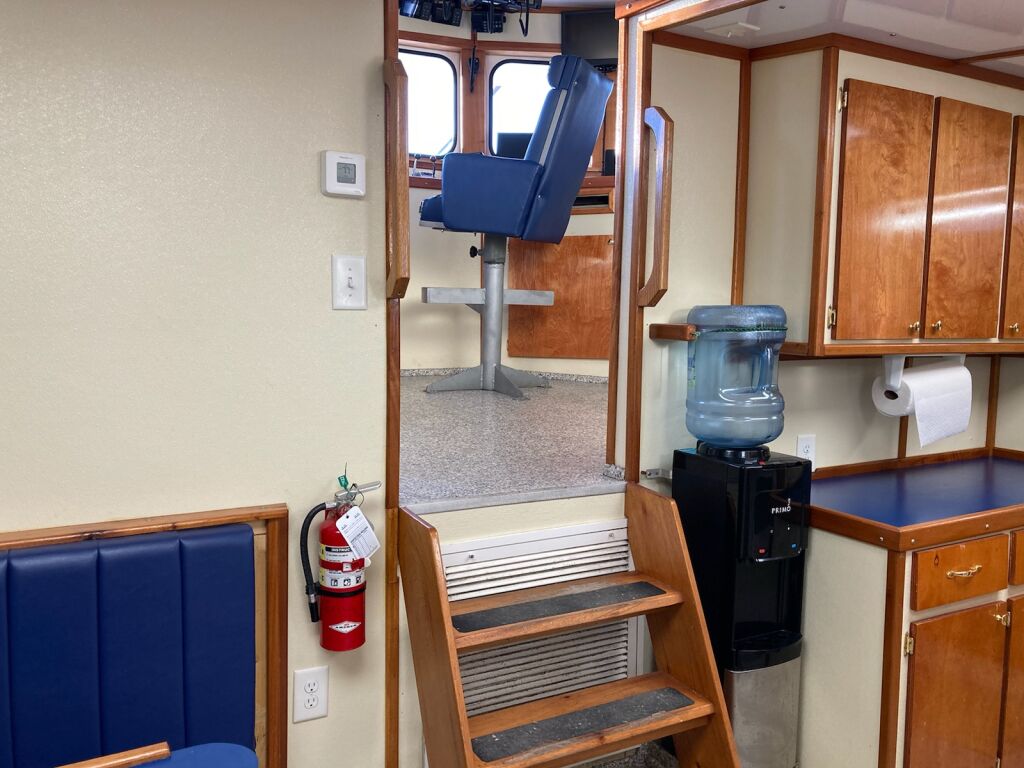

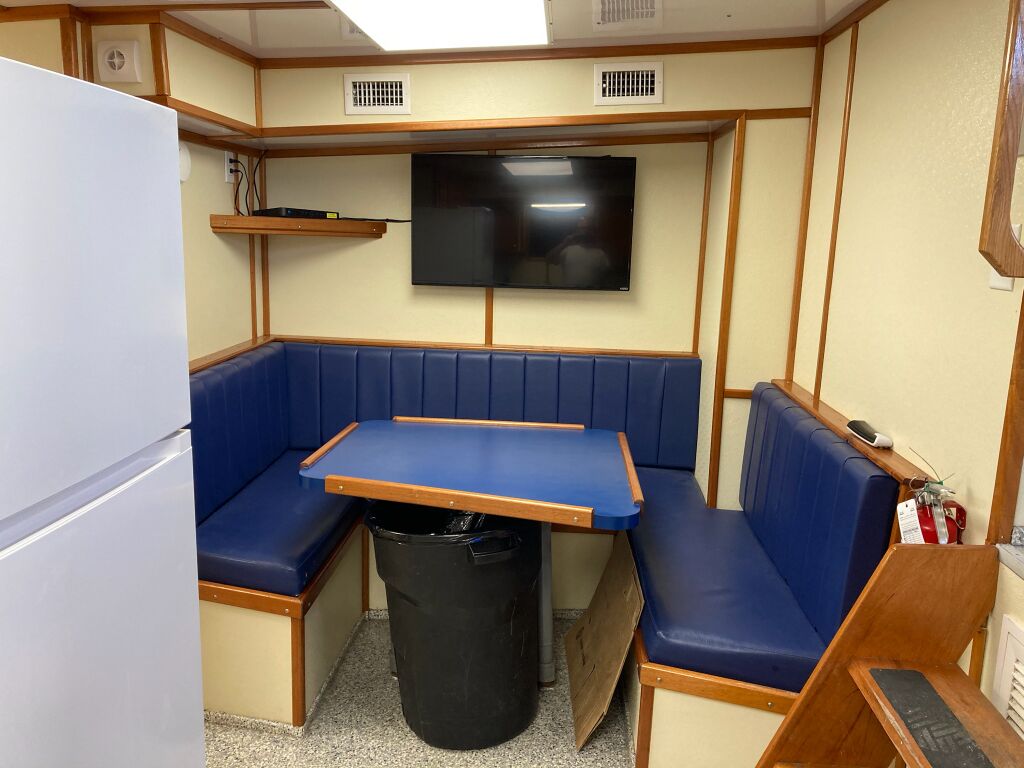

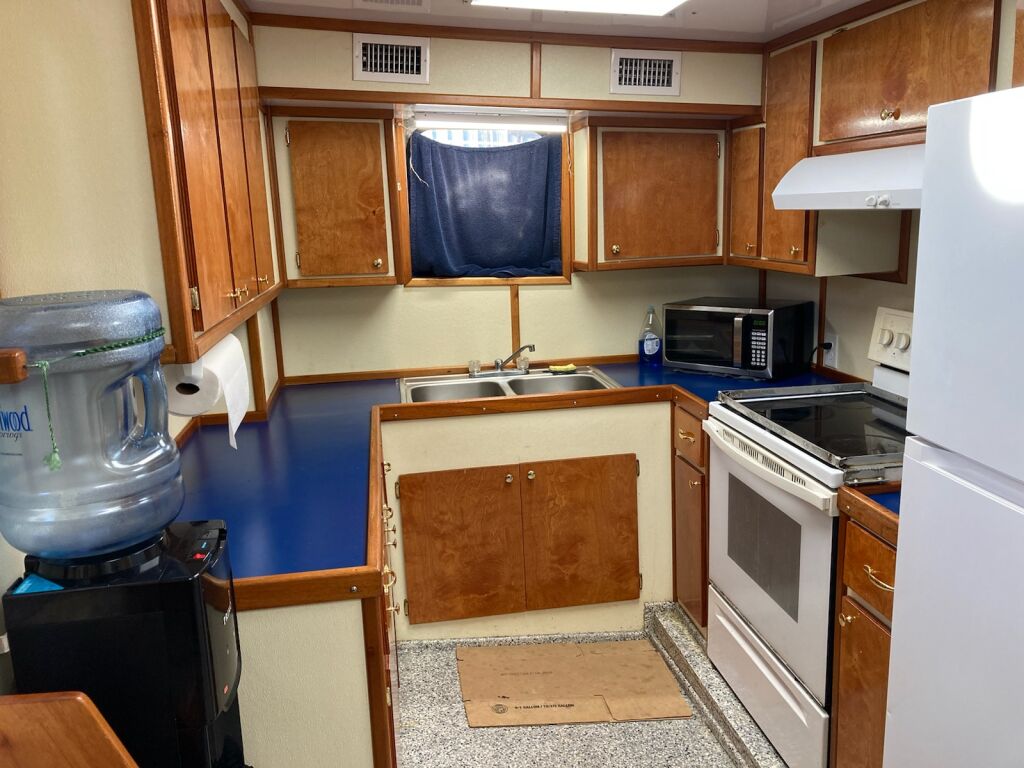

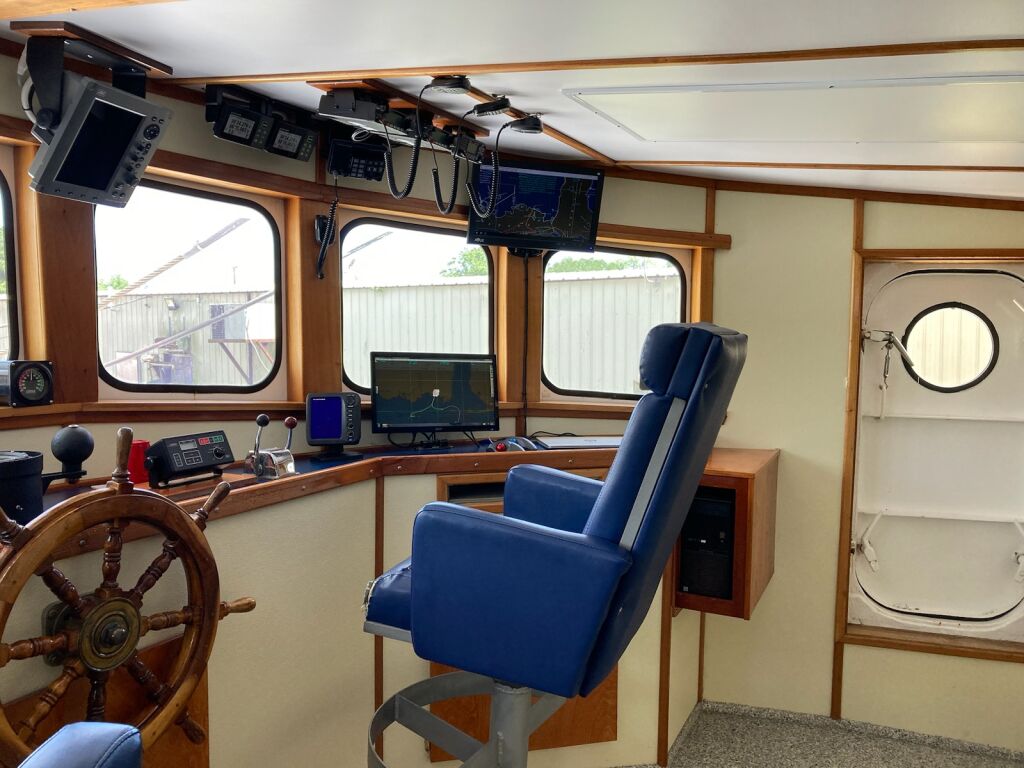

The deckhouse is constructed of 1/4" plate, flat bar and angle framed, fiberglass insulated and ceiled throughout with fiberglass wall paneling, fiberglass overhead panels, Spanish Cedar cabinets and trim and Targinol epoxy flooring. Beginning forward is the raised pilothouse fitted with a formica covered console with access panels beneath, port and starboard exit watertight doors, two (2) pedestal type pilot chairs and gasket fitted 1/4" tempered safety glass windows. Lighting is AC LED and DC incandescent. AC & DC ships service electrical panels are located port side aft pilothouse. Forepeak escape access is located beneath the pilothouse to deckhouse steps. Aft of and four (4) steps down from the pilothouse on the starboard side is the galley equipped with a Whirlpool 4—burner 240 VAC electric stove with Nutone 120 VAC vent/ light; Hamilton Beach 120 VAC microwave, 120 VAC refrigerator and a Primo 120 VAC bottled water cooler/ dispenser. A double basin stainless steel sink is fitted into a formica covered counter with ample storage cabinets provided above and beneath. Port side aft of the pilothouse is arranged a formica covered crew mess table with built in upholstered seat lockers. Starboard side aft of the galley are arranged fore and aft staterooms, the forward fitted with one (1) bunk and the aft fitted with four (4) bunks. Both staterooms are fitted with adequate storage lockers and drawer space. Port side aft of the diffing table is a water closet equipped with toilet, shower stall and lavatory/ vanity. In the aft port corner of the deckhouse is the engine room access companionway and exit watertight door to the aft deck. Deckhouse is equipped with a R.S. Price & Son, 5—ton capacity, water cooled heat pump type 240 VAC central heating and air conditioning system.

Kenmore 120/240 VAC stacked clothes washer/ dryer in forepeak. 1 — Reverso oil change system.



Electronics:

Furuno color LCD sounder, model FCV—628

Furuno radar antenna, type RSB

Furuno GPS receivers, model GP—39,

Si—Tex AIS Class 'B' Transponder, model MDA—5 .

1 CLS Iridium fisheries monitor system, model Triton 3Gr S/N AE32006003152.

Furuno color LCD sounder, model FCV—628

 1    ACR Category 1, 406 MHz EPIRB, model RLB-32,

UIN - 2DCC9FF840FFBFF.

(2) ICOM VHF Redeivers w/ Shakespeare broad band VHF antennas, model 6500—WB .

Battery Expiration — 07/2030.

Standard hailer, model VLH—3000A, S/N OF340058 .

1  Weatherproof horn speaker (above trawl winch) .

1  ComNav autopilot, model 1001, S/N HI 15949.

ComNav rudder angle indicator

(2) E & R Marine Electronics navigation computers, each with DVD/ RW & drive, keyboard, APC Back—UPS ES350 UPS, Logitech trackball, Avue 19" LED display and loaded with P—Sea Windplot navigation software

Direct TV receivers for (1) Magnavox 27” LED TV  & (1) 32” TV

1 — KVH tracking satellite television antenna, model TracVision TV1 . Sharp 5—disc micro compact stereo system, model XL—BH250.

1    Emergency Power Source battery.

1 — Newmar Emergency Power Source battery charger, model PT—40U.



Class/ Life Saving Equipment: 6 Type I Life Vests fitted with PFD lights and whistles . 4 30" Ring Buoys, one (1) fitted with 90 r tether. 1 11.8" Ships Bell. 1 First Aid Kit. 1 SOLAS 'A' Distress Flare Kit . 1 Viking 6 person SOLAS 'A' Life Raft, s/N 12133897, (Next Service 08/2022)
Boat Location: GOM

Special Features Include:

CARGO FREEZER SYSTEM:

Vessel is fitted with a 4000 cubic foot 65,000#  capacity fully insulated shrimp hold. The cargo freezer system consists of two (2) Carrier model 5F40 compressors each driven by a 20 HP Bal dor 230/460 VAC, 3—phase electric motor. System cooling for each compressor is accomplished by a 1 HP 115/230 VAC, I—phase, 1-1/2" Sta—Rite centrifugal pump through a Standard Refrigeration condenser. An approximate 4000 cubic foot capacity fully insulated shrimp hold is fitted with seven (7) 12' x 2' and one (1) 10' x 2' grade 5086 or 6061 T 6 aluminum evaporator/ chill plates. An 8' x 5' x 4' fiberglass reinforced polyester construction refrigeration brine tank with 3 HP 230/460 VAC, 3—phase motor driven agitator is located on the aft work deck.

This vessel was last hauled  in August 2021 . During shipyard haulout, the shipyards welder created a hot spot necessitating the following restitutions.

This resulted in a major refit of the deckhouse which required demolition of its interior and extensive renewals to include complete wiring, circuit panels, fixtures receptacles, etcetera; electronic & navigation equipment ; plumbing & fixtures; appliances wood work, paneling, cabinets, counters, etcetera and central air conditioning system.

Additional work accomplished during 08/2021 haulout included:

— All fuel tanks voided, opened, cleaned and gas freed.

— New stainless steel fuel lines installed from aft fuel tanks to engine room.

Shark cage installed over underwater running gear .

 Hull near white sand blasted and painted with an epoxy coating system from keel to masthead.

— Necessary sacrificial zinc anodes installed.












Contact Us: Email Us
Call Us: Bob - 954.224.2628

GENERAL DESCRIPTION & INTENDED USAGE :

The subject vessel  is offered in "Pristine Condition"  constructed  all welded A36 steel, Cummins K19 M3  single screw, diesel powered, refrigerated Gulf of Mexico style shrimp trawler with deckhouse forward, mast and outriggers amidships and work area of deck aft. The vessel is currently engaged in the commercial shrimp fishery in Gulf of Mexico waters and has only 2000 hours since major refit. State licenses for Alabama, Florida and Louisiana available. The subject vessel is fitted with five (5) transverse bulkheads from bow to stern.
