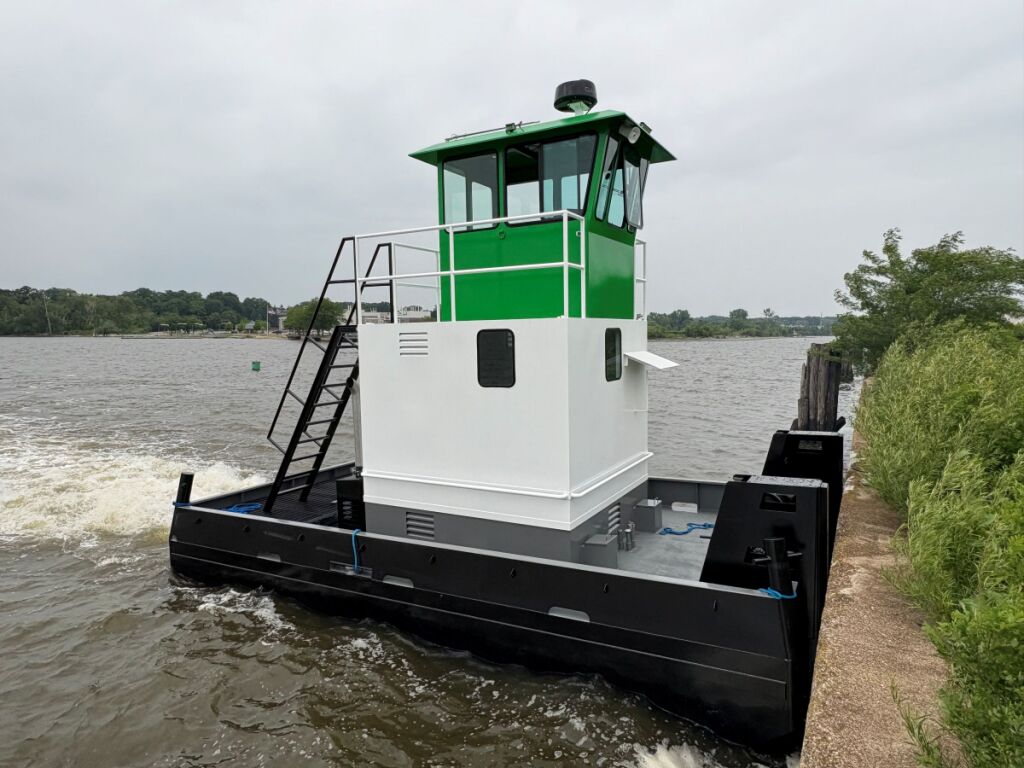

Brand New 25' Custom Truckable Tug- Timely Completion
25' Sistership Recently Delivered
25' Sistership Recently Delivered
(2) Cummins QSB 6.7 305 HP
Builders Machine Shop
All Ads by User
| Add to Favorites
| Reply to Ad
| Tell Your Friends
| Ad Number: | 976 |
| Builder: | Custom Build |
| Year: | 2025 Model |
| Model: | Truckable Tug |
| Length: | 25'11" |
| Beam: | 14' |
| Light Draft / Max Draft /Light Ship Weight/: | Ship Draft: 4'5" Weight #43,000 |
| Propulsion/ Props/: | (2) Cummins QSB 6.7 305 HP MDI's ,Twin Disk MG-5075SC Marine Transmission Ratio: 2.88:1 , 34" x 17" Props,Torsional Coupling Electric Shift 305HP @ 2600RPM EPA Tier 3, Peak Torque: 866 Ft-lb @ 1700RPM |
| Your Price: | POR |
| Fuel Capacity, Transfer Rate, Lube Oil: | (1) 525 – gallon (approx.) fuel cell/transfer tank. Fuel System: Fuel Filter - 5 Micron, single spin on Fuel Water Separator: Single Racor 900MA with WIF sensor and harness |
| Genset(s): | Optional |
| Deck Space/ Cargo Capacity / Winches, Crane & Other Equipment: | Manual Winches Optional |
| Boat Location: | Mid West |
Special Features Include:
| |
| Contact Us: | Email Us |
| Call Us: | Bob - 954.224.2628 |
Accommodations:
Electronics:
A Disclaimer:
While we attempt to display current and accurate data, this listing may not reflect the most recent transactions or may contain occasional data entry errors.
Selling agent makes no warranties, express or implied, regarding the content or today's availability of the products described herein. All equipment and statements listed are subject to today's availability, classification, certification changes, contract in progress or prior sale. Photographs may be representative only, may feature optional equipment offered at extra cost and may vary somewhat from the actual items offered for sale.
Pilot House
- 5’ W X 5’6” L X 7’ T
- (2) sliding windows, 1 on each front side of pilot house
- (1) top hinge swing open window in front center
- (8-9) TTL windows
- Lockable door
Electronics:
Telcor master RAI 12vdc (Rudder Angle Indicator)
- Dash mounted switch panels
- Wire chases built into cab structure
- Standard marine navigation lights, Red, Green, White, and Yellow if requested
Hull Dimensions:
- 25’ x 14’ x 4’5” Weight: # 43,000
- These truckable tugs are swift, highly manueverable and easy to operate with their Electro-hydraulic steering system. They include PTO driven pumps driven off Twin Disk MG-5075SC Marine Transmissions. Flanking Rudders are available as an option.
Finish
- Sand blasted (near white metal)
- Main hull (2) coats of Marine Epoxy
- Deck (2) coats of Marine Epoxy with anti-slip
- Trunk and cab (1) coat of Marine Epoxy primer and (1) coat of Urethane topcoat. Secondary colors can be added as requested for an additional cost
- Bottom Paint Optional
