Ad Number: |
868 |
Year: |
2002 |
Model: |

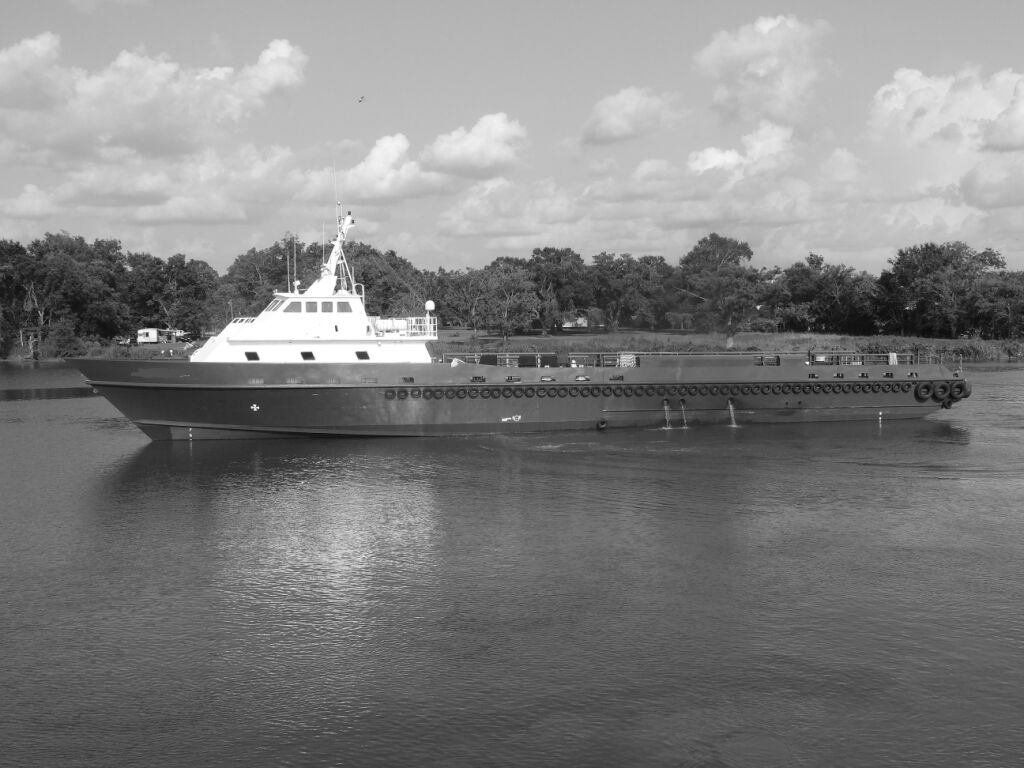

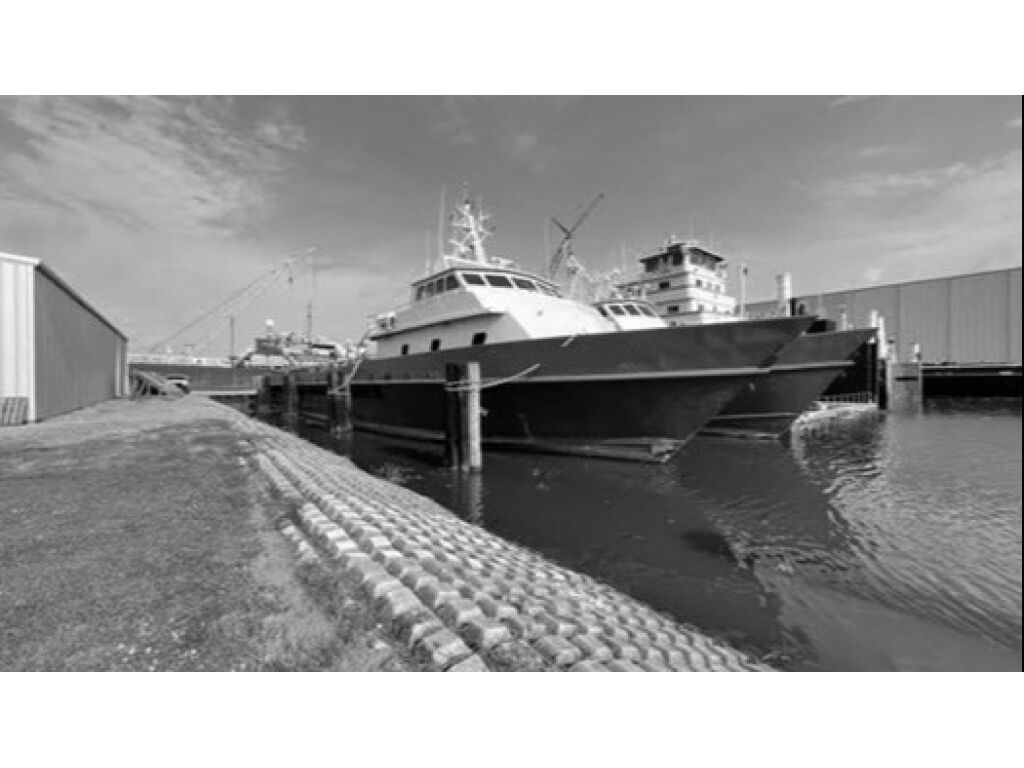

Crew Boat |
Length: |
170' |
Beam: |
28' |
Light Draft / Max Draft /Light Ship Weight/: |
13' |
Propulsion/ Props/: |

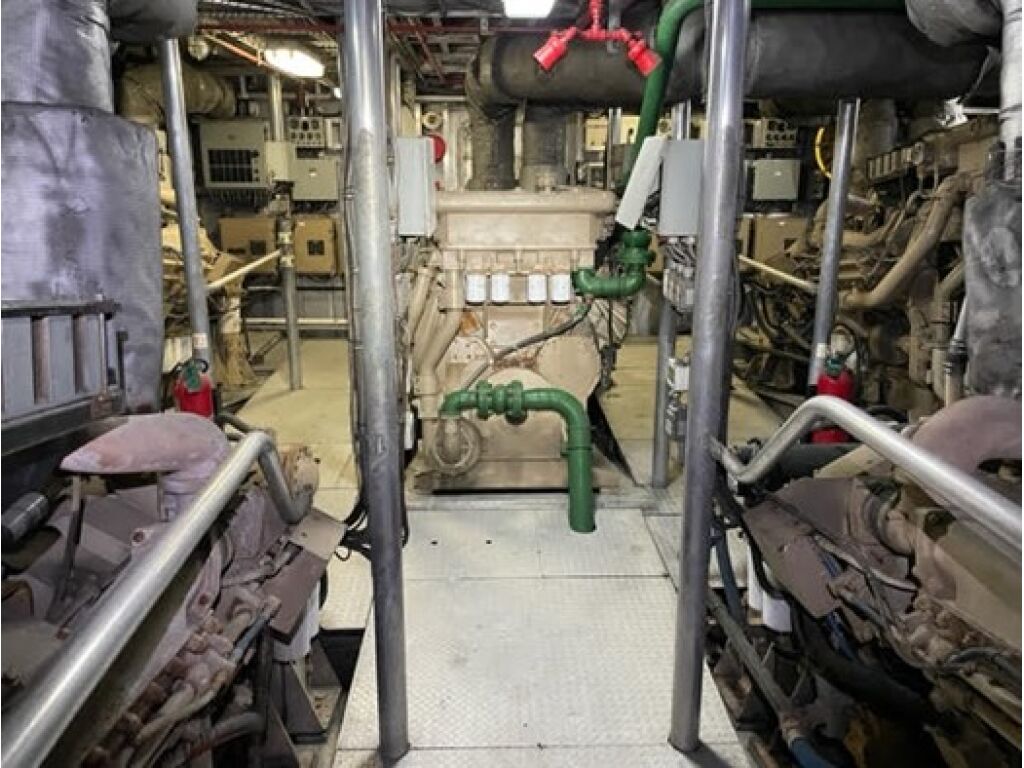

(5) Cummins KTA-38 12-cylinder diesel engines appc 5000 hrs + (5) Twin Disc MG 6550 clutches with a 3.47:1 ratio. • one (1) hydraulic tunnel thruster: o powered by a Regal Belliot pump. ▪ powered by a Cummins 6CTA8.3-M1 6-cylinder diesel engine. • f |
Overstock Price: |
$1,950,000 USD as is, where is, with immediate availability. Option 1: Alternatively priced at $2,950,000 USD delivered with fresh USCG COI |
Fuel Capacity, Transfer Rate, Lube Oil: |
24,000 gal |
Genset(s): |
Two (2) Cummins 6BT122-1800 6-cylinder diesel engines drive two (2) Onan MDGA-556350 75-KW generators. |
Water / Liquid & Dry Mud Caps: |
31,500 |

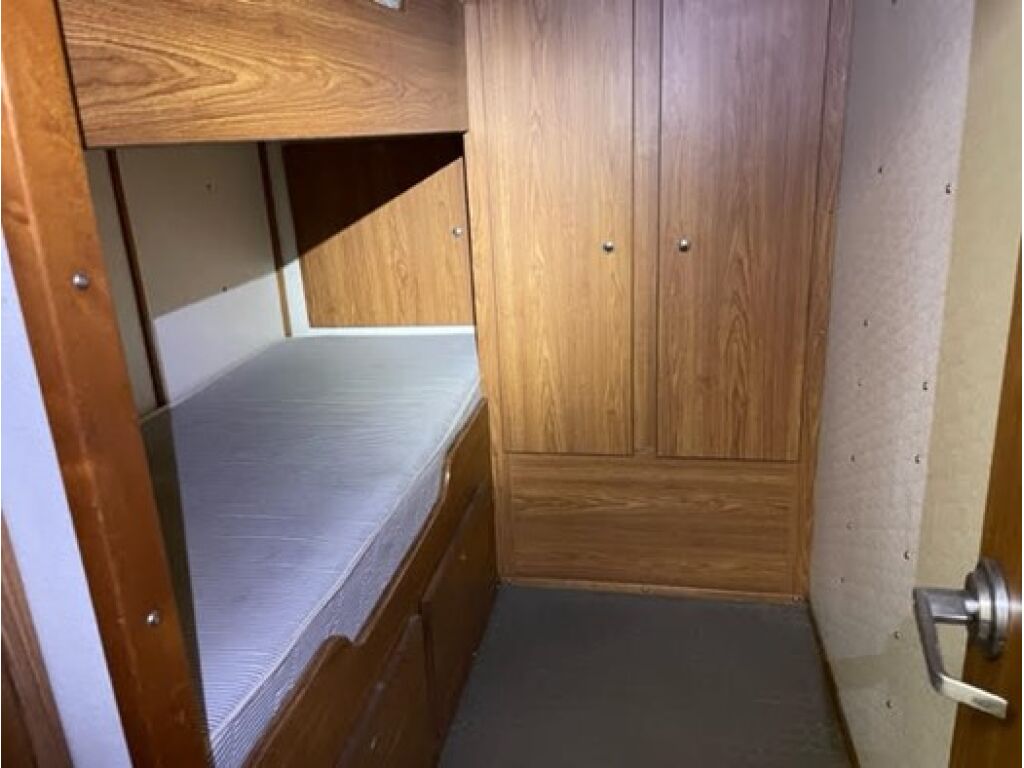

Accommodations: |

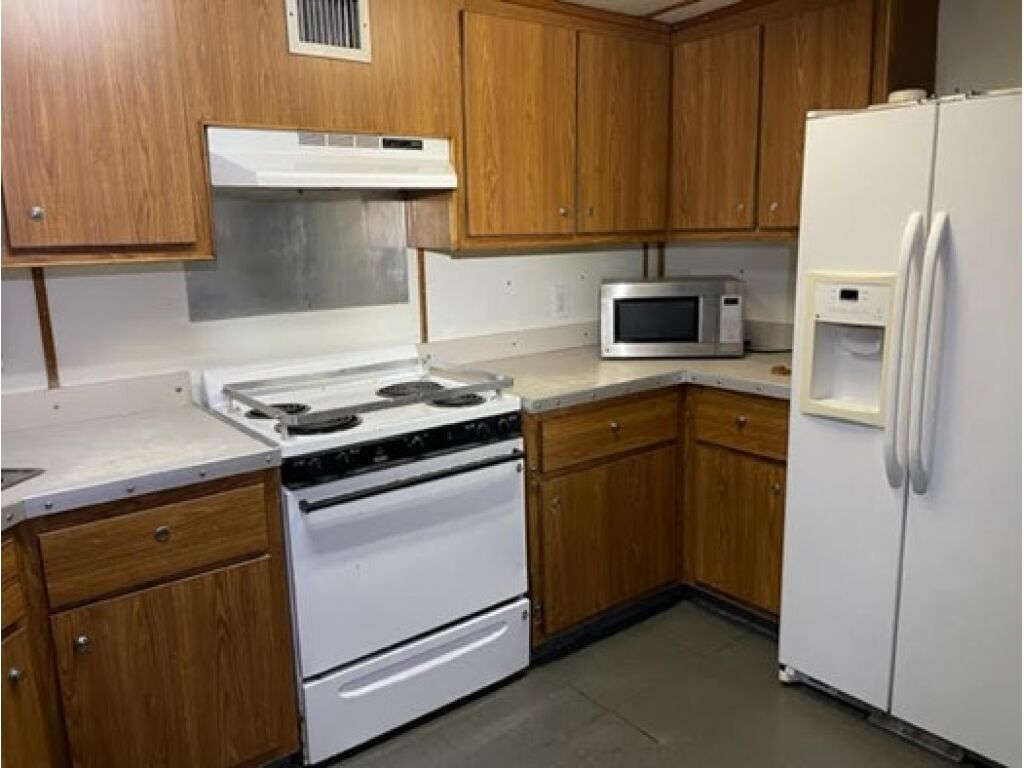

Galley contains the following furniture and/or equipment:
o one (1) Crosley 4-burner electric stove with a Broan vent hood.
o one (1) GE microwave oven
o one (1) GE 28 cu. ft. refrigerator/freezer
o one (1) GE 10 cu. ft. deep freezer
o one (1) stainless steel dual sink with garbage disposal
o one (1) dinette set with seating for six (6)
o one (1) Sanyo 25” TV with a DirecTV box |
Electronics: |

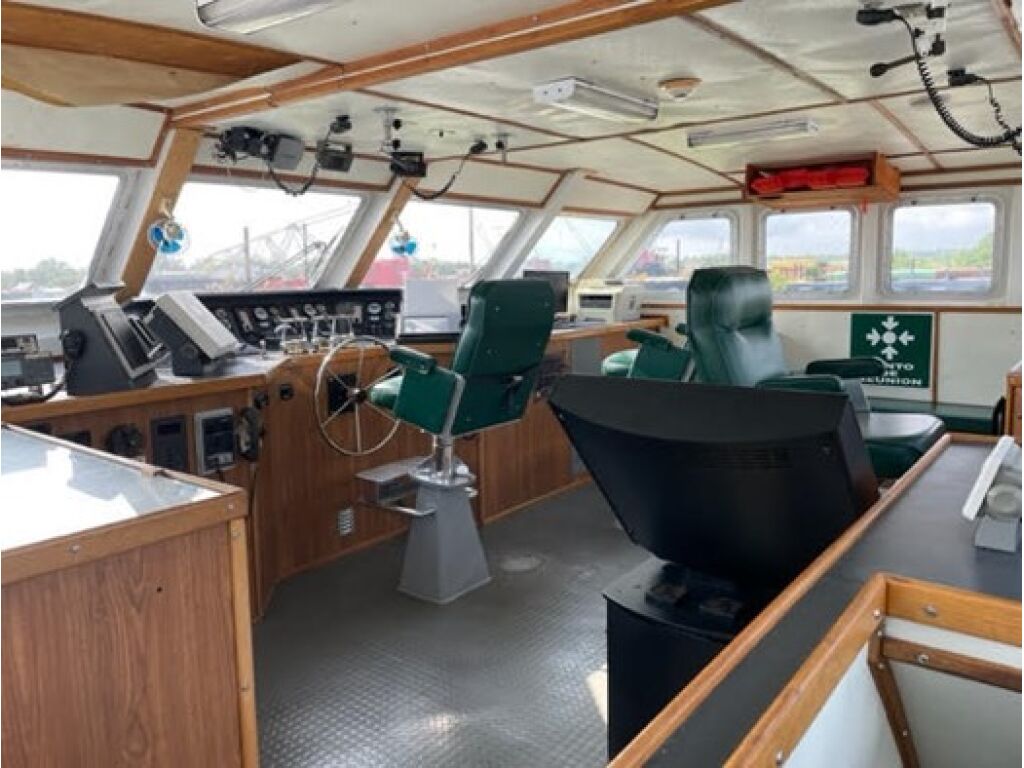

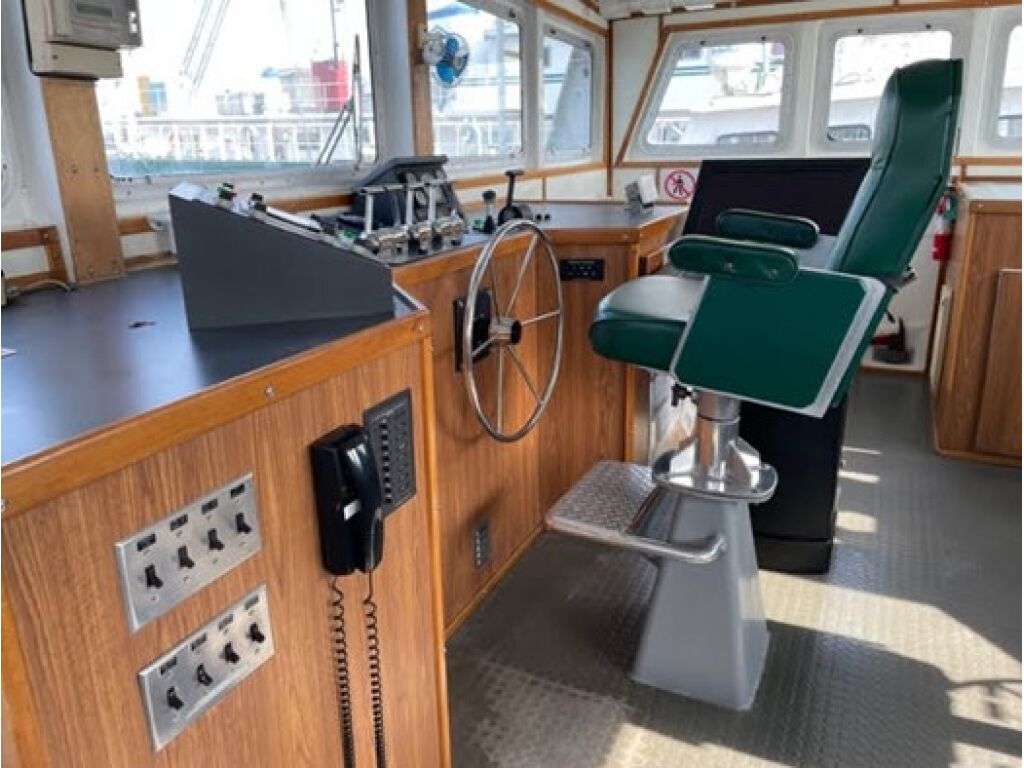

PILOTHOUSE:
Forward and Aft Control Stations each contain the following equipment:
• one (1) dual trumpet air horn
• approved type navigation lights
• three (3) Carlisle & Finch 10” spotlights
• one (1) Ritchie 8” compass
• two (2) MT Meridian Bridgemate gyro compasses
• autopilot system is operated through the DP system.
• three (3) VHF radios
▪ two (2) Standard Horizon GX 2000
▪ one (1) Standard Horizon GX 1150
SURVEY REPORT NO. 230511
5
PILOTHOUSE: (continued)
• one (1) Furuno FS-1503 single side band radio
• one (1) Necode 322 ARX encoder/decoder
• two (2) Furuno RDP-150 72-mile range radars
• one (1) Furuno FA-150 AIS
• one (1) Garmin Map 541 GPS
• one (1) Furuno GP-31 GPS
• one (1) DP 2 system
• one (1) Furuno LS-6100 depth sounder
• one (1) Furuno NX-300 Navtex receiver
• EMI single lever electric controls
• EMI rudder angle indicators
• one (1) Furuno LH-3000 loud hailer
▪ two (2) external speakers
• two (2) electric windshield wipers
• one (1) 46” x 55” x 44” built-in chart table with:
▪ one (1) drawer
▪ one (1) cabinet
• one (1) IMS system with four (4) stations throughout the vessel.
• one (1) Lenovo desktop computer with:
▪ 17” flatscreen monitor
▪ keyboard
▪ mouse
▪ Brother printer/scanner
• one (1) Power Panels Inc switch panel
• two (2) Young wind monitors
• one (1) EMI valve control panel
• multiple tachometers, gauges, and throttle controls for main engines.
• located atop the pilothouse is a mast pole with navigation lights, running lights, searchlights, radio antennas. |
Class/ Life Saving Equipment: |

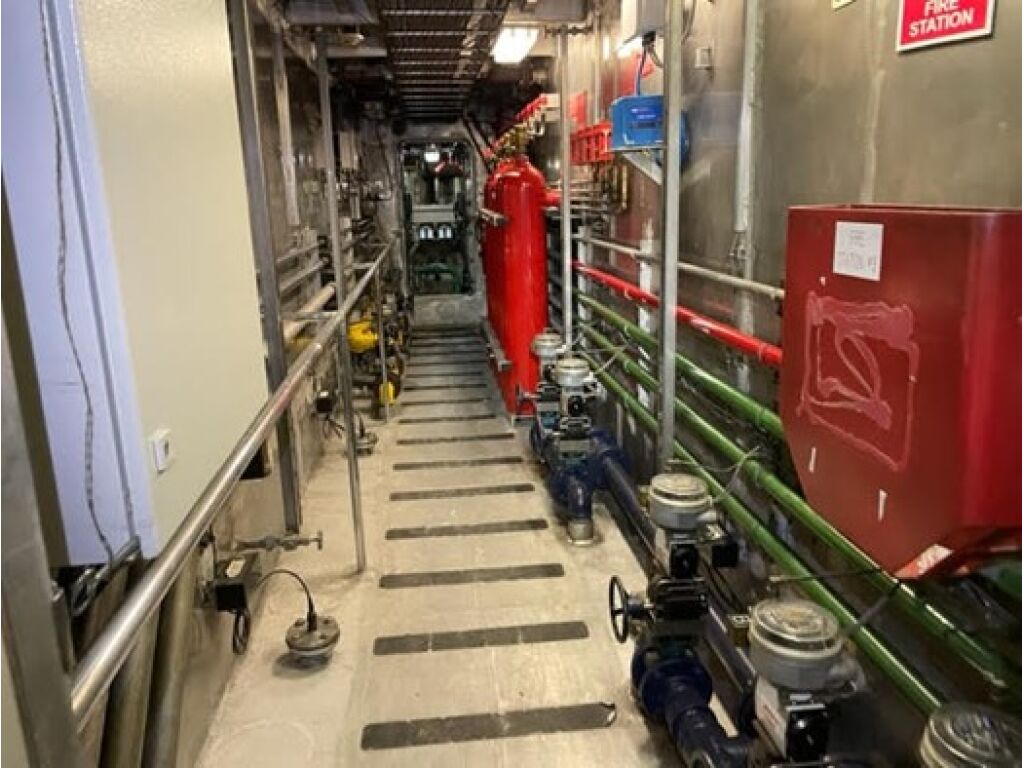

Firefighting equipment consist of the following: • one (1) 2.5-lb. dry chemical fire extinguisher • nine (9) 20-lb. dry chemical fire extinguishers • one (1) 10-lb. dry chemical fire extinguisher • one (1) 500-lb bottle CO2 system • cable contro |
Boat Location: |
GOM & Florida Locations |
Recent Survey May 2023 DP1
Fresh Water Storage, on Shore Power with A/C on. |
